light + ventilation
mini
The evolution of an icon, now 60% smaller. With a fixture diameter of just Ø68 mm, reduced from Ø108. Extracts up to 30 m³/h. Delivers up to 700 lumen, glare-free. Built on years of experience and proven performance.
Recommended accessories
Consider adding these items for a successful installation.
All-new design.
Built on an icon.

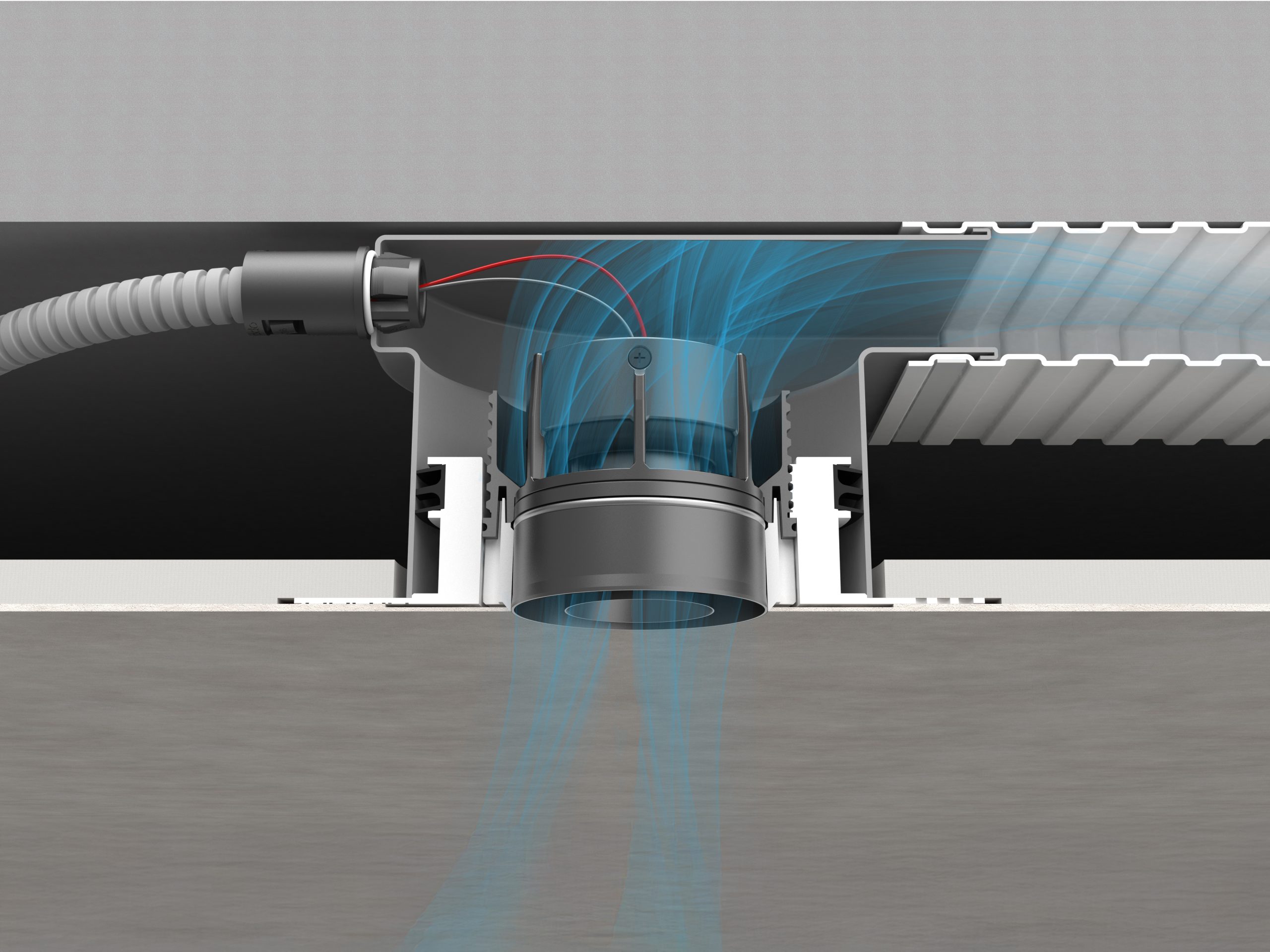

Re-imagined. Re-engineered. Every detail considered. The new light + ventilation | mini is significantly more compact. Even more refined. A completely re-engineered ventilation mechanism reduces the visible diameter to just Ø68 mm, down from Ø108. All while improving performance, significantly.
Watch the film
designed to disappear
universally compatible
The adjustable plaster ring adapts to different ceiling finishes and is compatible with Ø100 and Ø125 ventilation ducts. Works with DUCO. Works with Renson. Works with every other ventilation system. An intuitive airflow mechanism offers 20 adjustable steps with an integrated lock. Extracts up to 30 m³/h. Delivers up to 700 lumen, glare-free.
Product details
Specifications
Accessories
Downloads
refined luminaires
performance
Pure cylindrical forms, crafted from solid, precision-milled aluminium and brass. A custom glass lens delivers a low-glare light experience. Industry-leading LED technology provides up to 700 lumen. With its IP rating, it performs beautifully in any room. Introducing a fixture that’s stunning from every angle.
FAQ about ventilation
-
How is the light + ventilation | mini powered?
Our light + ventilation | mini receives its power via the valve adapter. Use our prado connector (complementary with the adjustable plaster ring Ø68) to connect the Ø16 preflex to the valve adapter. With an IP65 rating, light + ventilation | mini is suited for environments like bathrooms and other intimate spaces.
Can the light + ventilation valve be used for air supply?
Our light + ventilation | mini valve is designed for air extraction of up to 30m³/h. Just like most regular ventilation valves, a downward airflow isn’t suited for installation in or above comfort zones. More information and capacity graphs on the technical sheet. Don’t hesitate to contact us to check your ventilation plan for advice.
Which ventilation brands can I use with light + ventilation?
We work independent of any brand. Our light + ventilation products are compatible with any ventilation system (DUCO, Renson, any other ventilation system). The Ø68 adjustable plaster ring comes in two variants and is compatible with Ø100 and Ø125 ventilation ducts.
What is the minimal height required to install a light + ventilation valve?
The vertical part of the ventilation adapter (before the start of the turn) must be at least 68mm high for the plaster ring Ø68 to be installed correctly. The connector can’t be placed in this zone. With most valve adapters, this means you need a total height of at least 105mm. Check the adjustable plaster ring Ø68 installation instruction or watch the installation video to learn more about installation.
