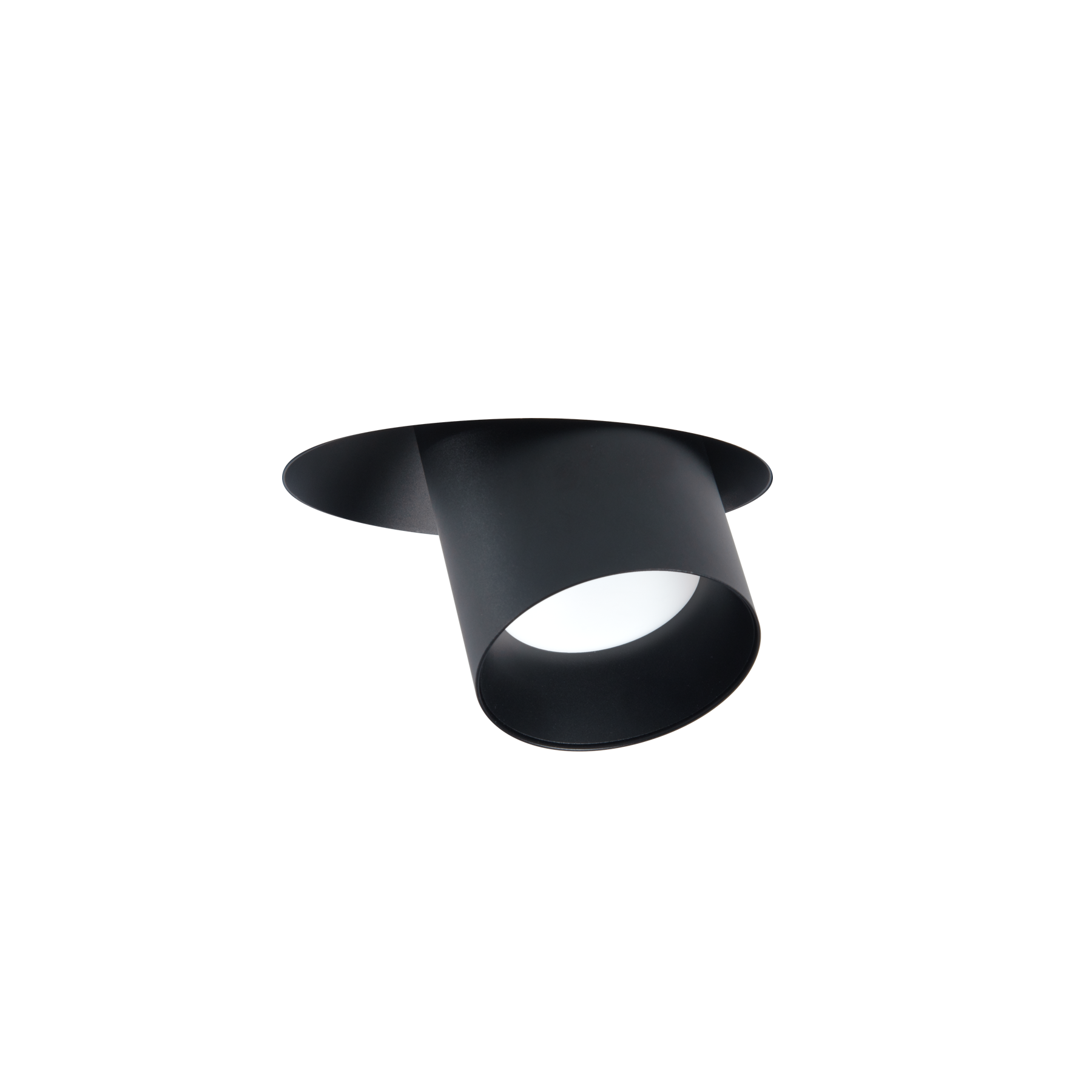

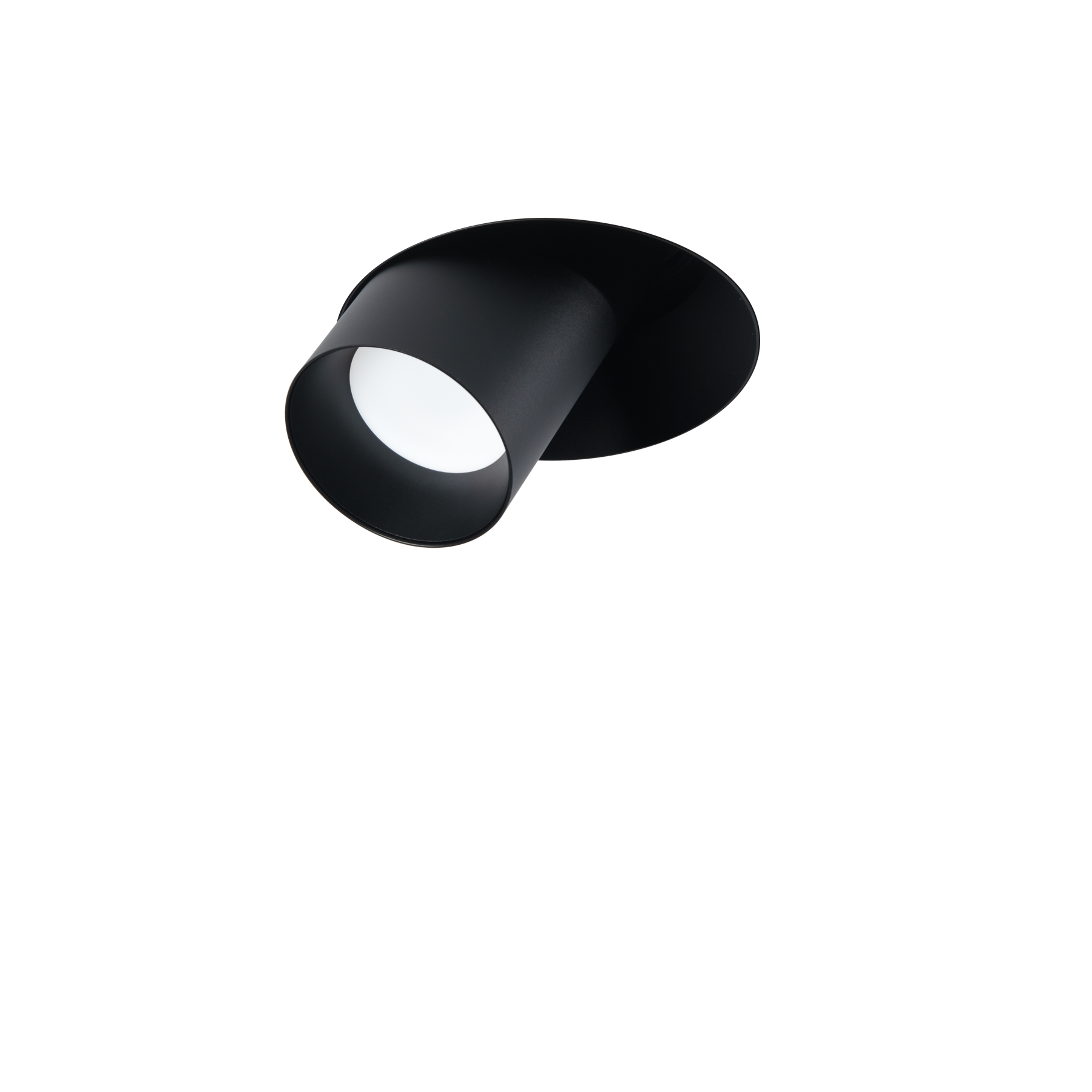

light + motion + ventilation
long

Discover the combination of a powerful, diffuse downlight with an invisibly integrated PIR sensor and invisible ventilation. Works fully autonomous. And compatible with any ventilation system: Duco, Renson …. Made from precision milled, anodised aluminium. Show what you want, hide what you need.



product overview



learn all about ventilation

 429,00 749,00 (excl. VAT)

Recommended accessories

Consider adding these items for a successful installation.

plaster ring Ø108

Our Ø108 plaster ring comes with a yellow plaster lid. The complementary connector makes it easy to add wires into your ventilation valve adapter. A big advantage of our Ø108 plaster ring lies in its compatibility with a wide range of solutions. Scroll down to learn more.

 29,00 (excl. VAT)

 29,00

adjustable plaster ring Ø108

Made for thick plaster, adjustable from 12 to 33mm. Comes with a yellow plaster lid. The complementary connector makes it easy to add wires into your ventilation valve adapter.

 39,00 (excl. VAT)

 0,00

clt csc ring Ø108

Our Ø108 clt csc ring is the ideal trimless solution for cross laminated timber and cold stretch ceilings. The complementary connector makes it easy to add wires into your ventilation valve adapter.

 29,00 (excl. VAT)

 0,00

concrete ring + cap Ø108

Allows you to seamlessly integrate Ø108 fixtures into a concrete ceiling (50mm recessed). Requires a concrete installation box. A big advantage of our Ø108-118 concrete ring lies in its compatibility with a wide range of solutions. Scroll down to learn more.

 69,00 (excl. VAT)

 0,00

lights up when you're there
shuts down when you're gone

Meet light motion ventilation. The world's first combination of a downlight, invisible ventilation and an invisible PIR sensor. By hiding ventilation and a PIR sensor in a fixture, we enable architects to create cleaner ceilings, and ultimately more calming homes.

light motion
better together

the benefits of a
combination product

Combining a luminaire with a motion sensor and ventilation does not only accelerate installation, it also offers sustainability advantages: fewer materials, less wiring and reduced power consumption.

Find a distributor

Product details

drawing light + ventilation long
icoon boormaat 132
360°
icoon gewicht 0.7

Specifications

lamp
LED
finish
alu custom brass finishes
light temperature
2700K 3000K
output
up to 800 lumen
CRI
90+
IP
↑ 20
gear
48 V driver excl.
class
class III
ventilation
air extraction
air flow
max. 50 m³/h
noise
< 25 dB(A)
pressure
7 – 75 Pa
adjustability ventilation
32 steps
locking mechanism
integrated
motion detector
passive infrared sensor (PIR)
detection angle
h 360 v 100
light sensor
integrated
master / slave
integrated
adjustability motion sensor
time - sens - lux
other
patents pending
