pradovent trim
Ø125

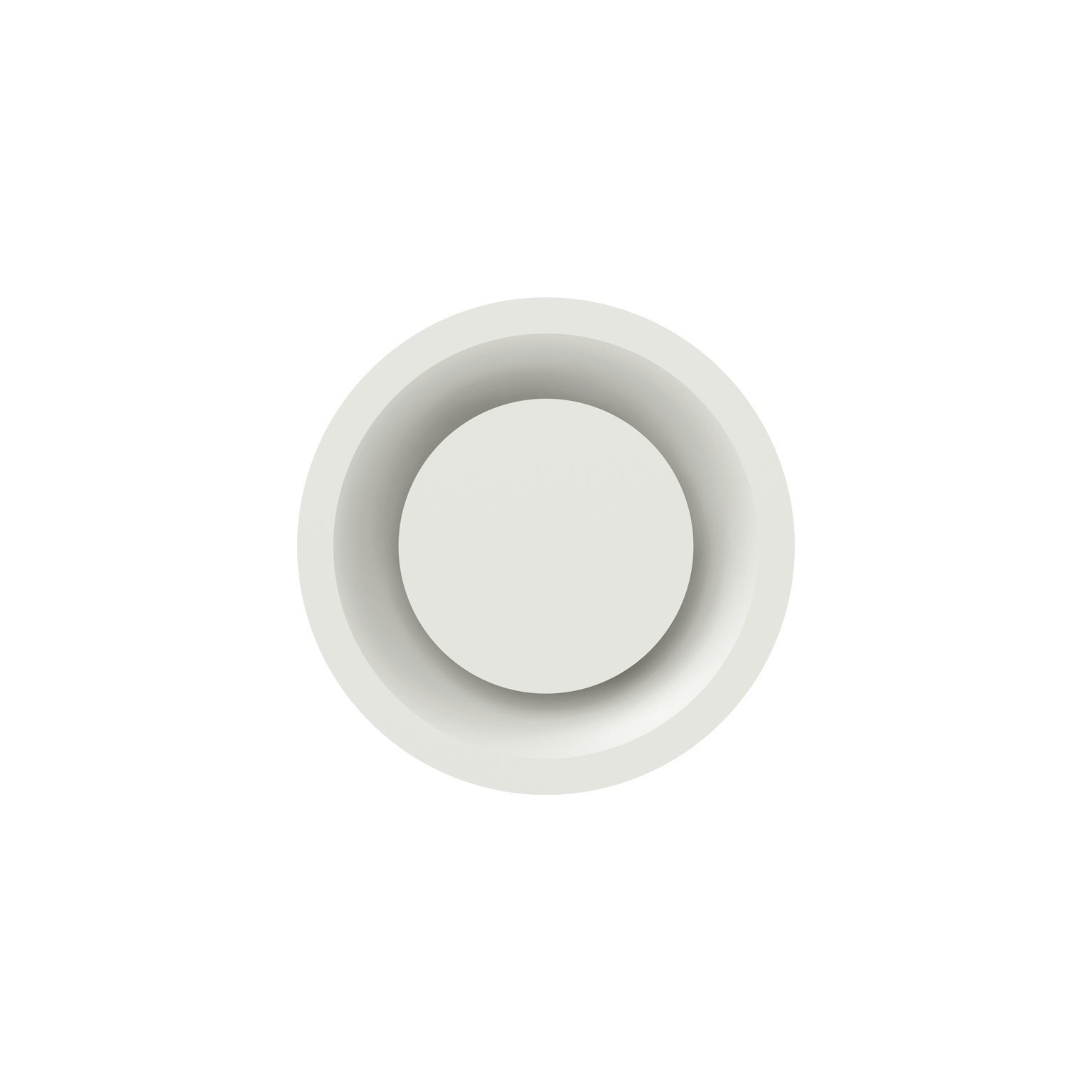

Meet pradovent trim Ø125. Fully adjustable and designed for air supply (up to 75m³/h). And air extraction (up to 50m³/h). Airflow is fully adjustable in 34 steps. The first recessed ventilation valve with Coanda effect. Fits into every Ø125 ventilation duct and comes with 2 cover plates.
Recommended accessories
Consider adding these items for a successful installation.
Product details
132
Specifications
type
supply or extraction
air flow
supply max. 75 m³/h
extraction max. 50 m³/h
pressure
5 - 85 Pa
noise level
< 27 dB(A)
adjustability
34 steps
color
white – RAL 9003

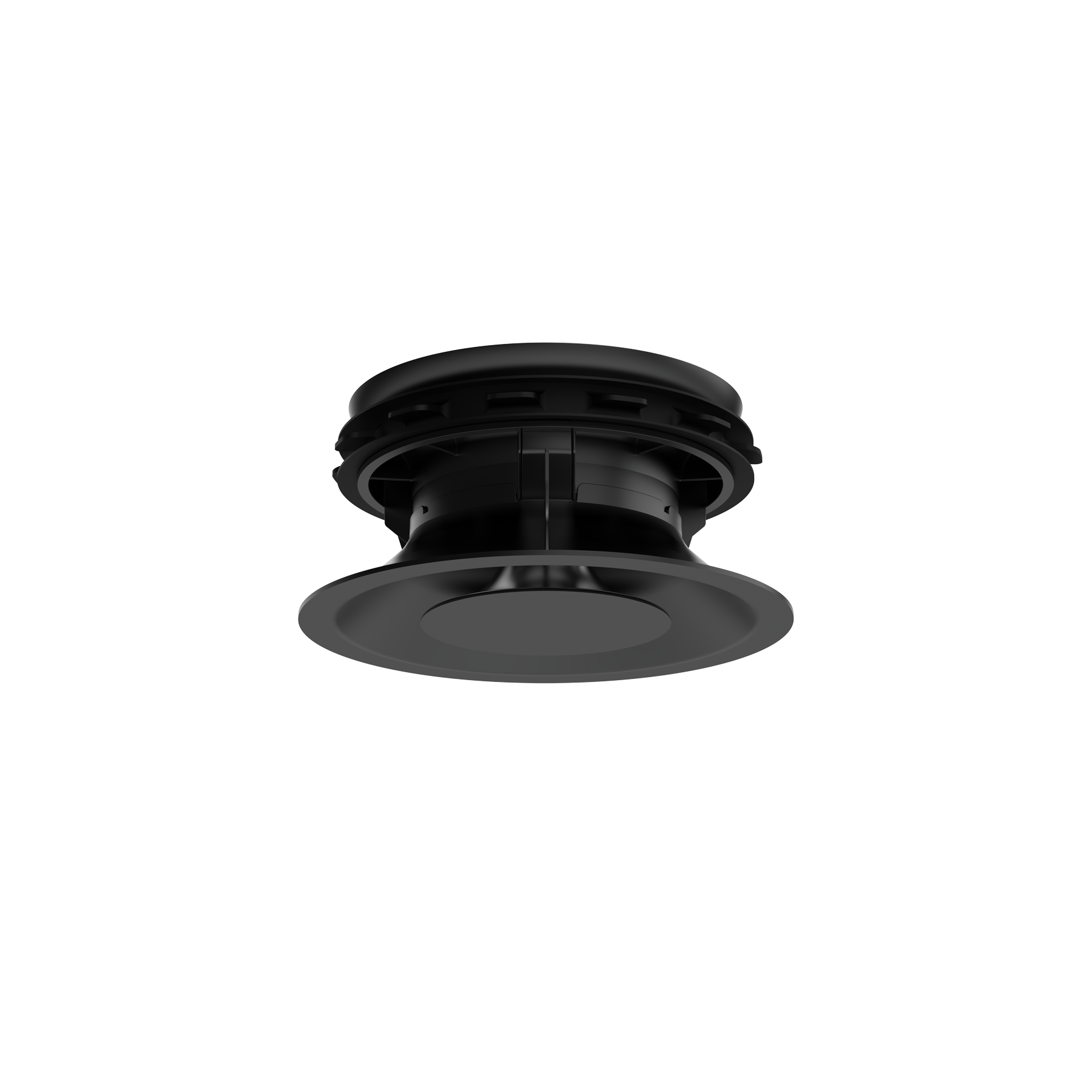

black - RAL 9005
compatibility
fits into every Ø125 duct
other
patent pending
paintable with synthetic primer
Accessories
Downloads
A flexible duct?

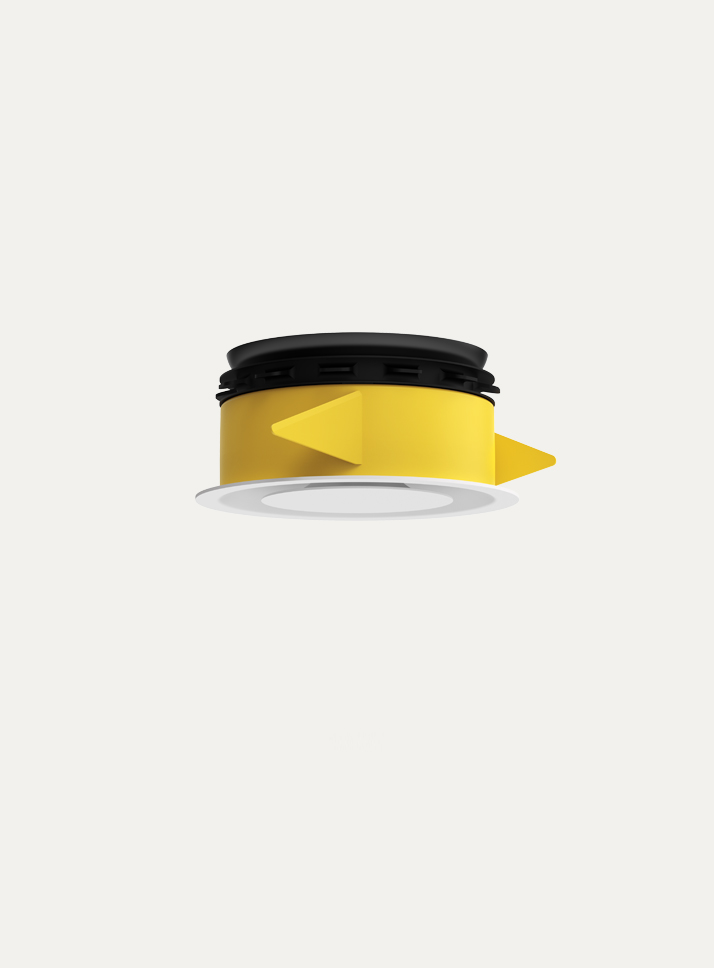

Use a mounting collar.
This accessory enables the installation of the pradovent trim Ø125 in gypsum ceilings when connecting to Ø125 flexible ducts.
Mounting collar
