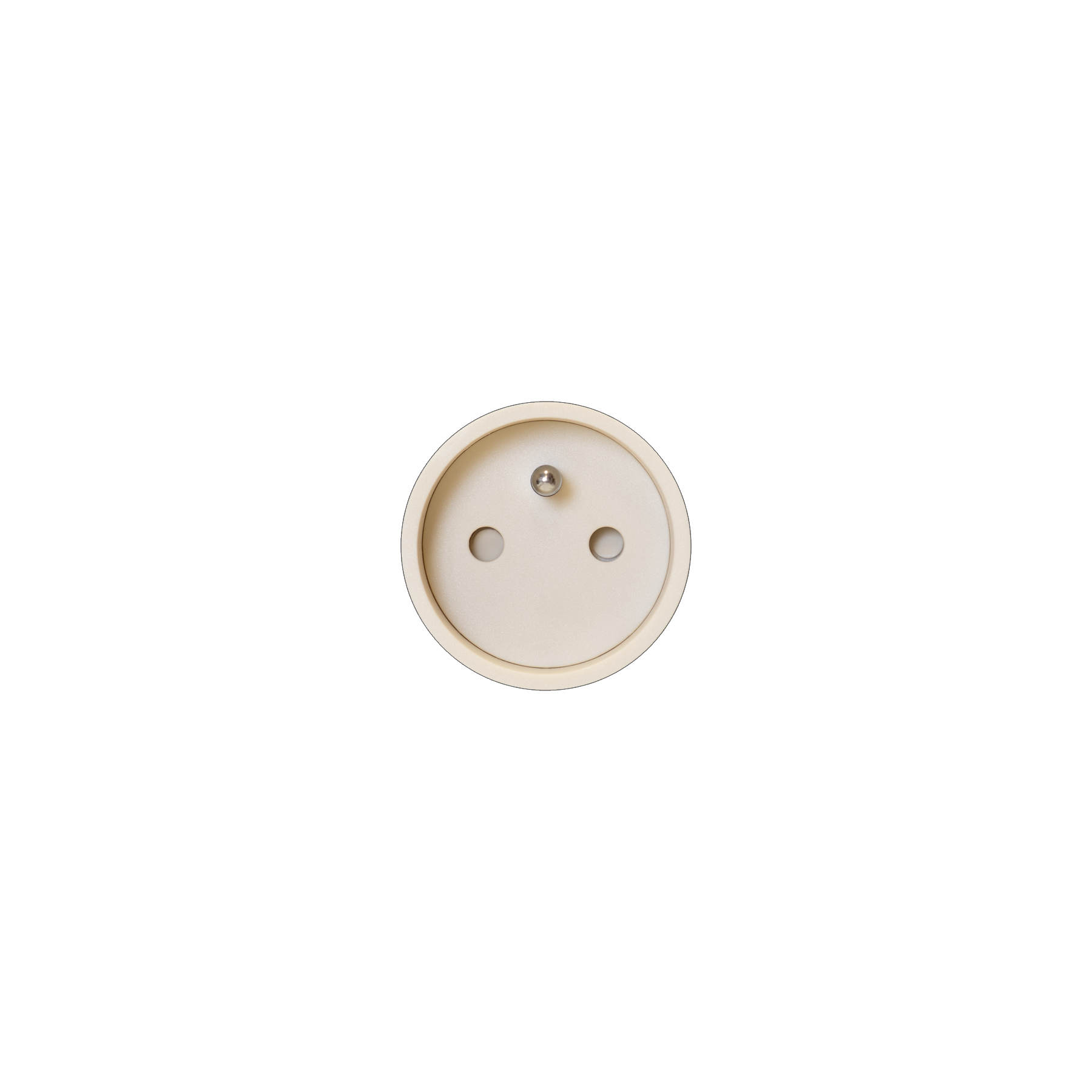

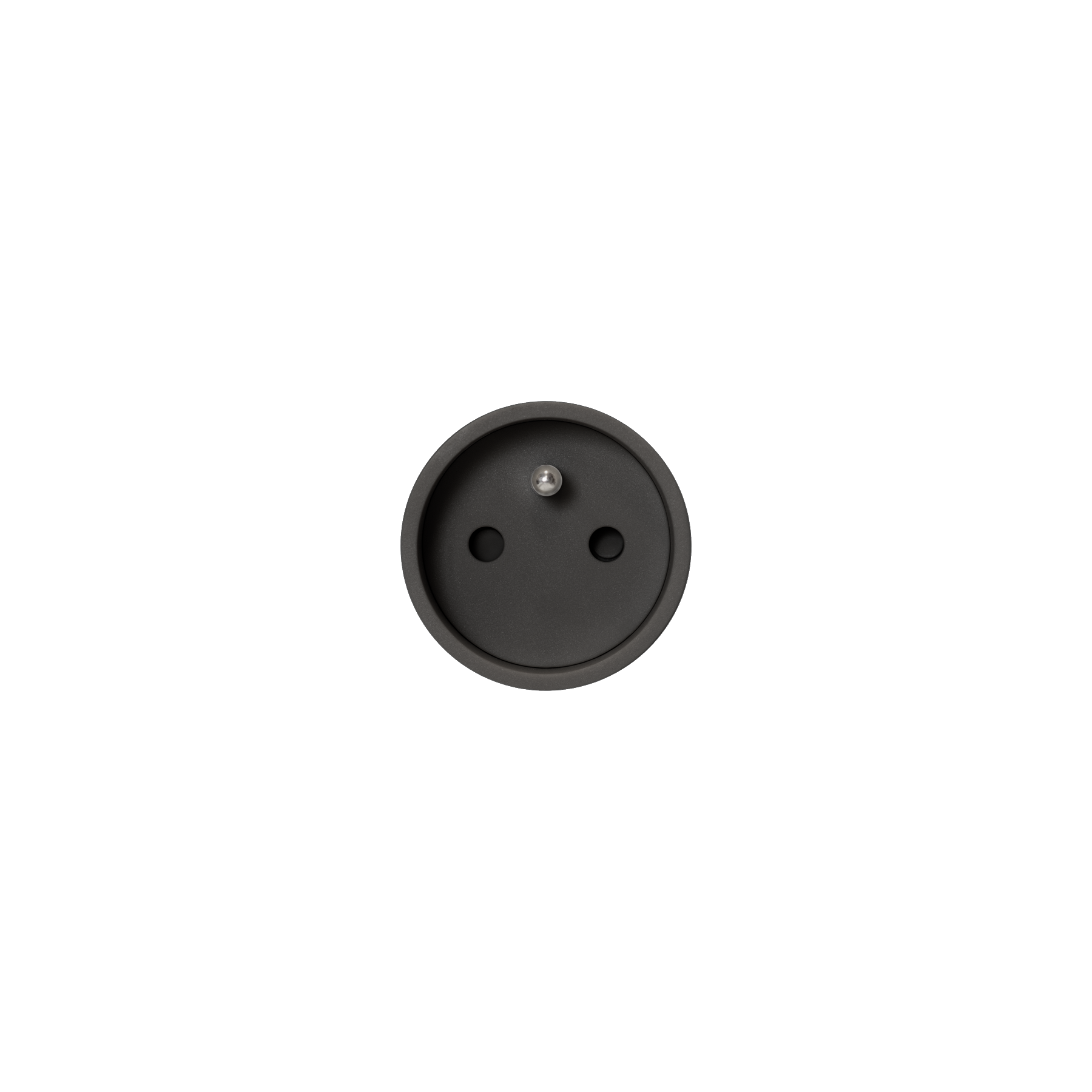

unifit socket
type E/F

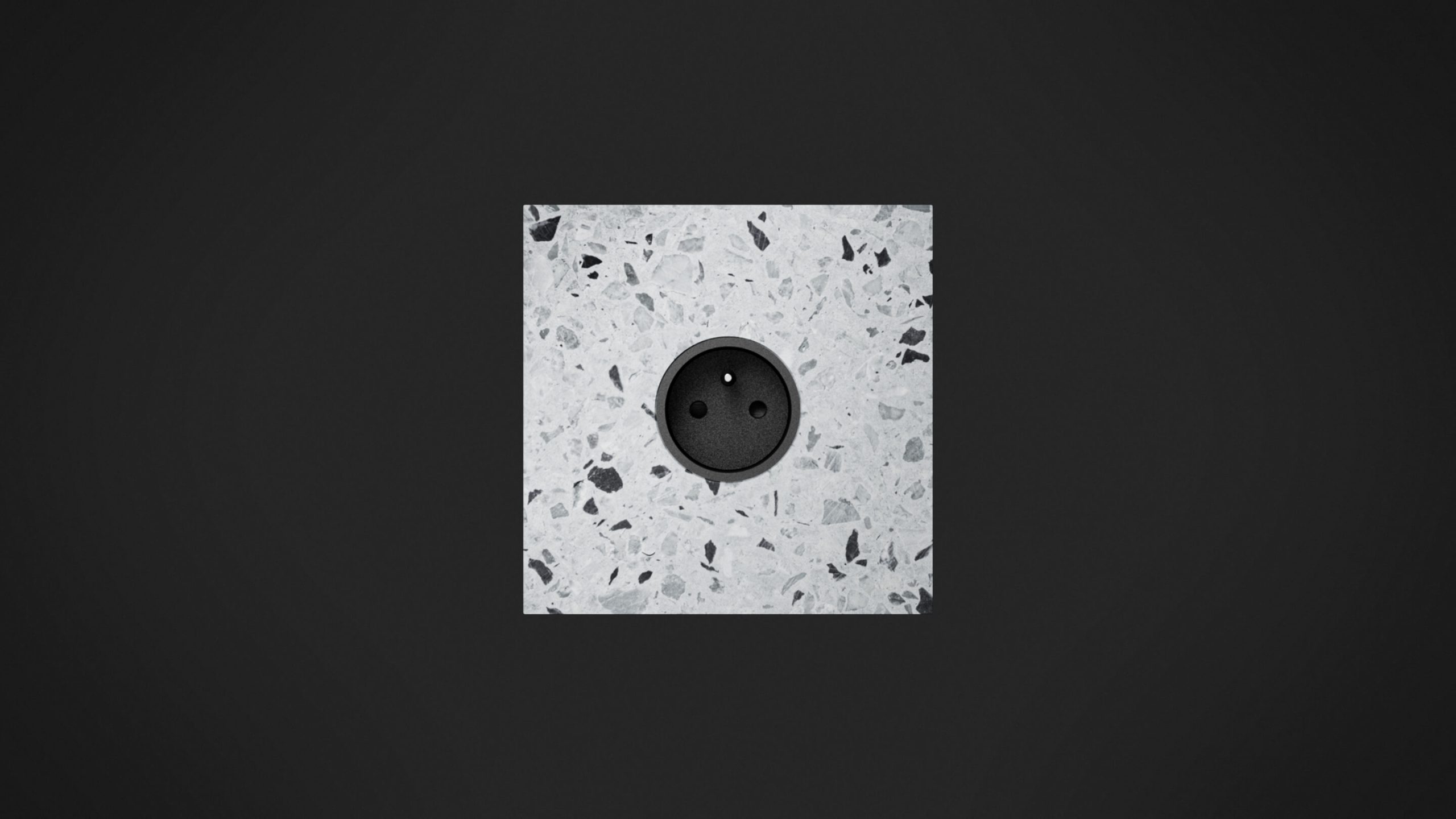

The world’s smallest socket. A single, all-in-one module that installs seamlessly into plaster, wood and stone. Corded or hardwired? The choice is yours.



product overview

€ 49,00 – € 69,00 (excl. VAT)

Configure yours

Product details

Recommended accessories

Consider adding these items for a successful installation.

Product details

Specifications

installation hole
Ø42 mm
flush mount countersink
Ø45.4 x 1 mm depth
panel thickness
16-32 mm (adjustable lugs)
application
16A / 250V

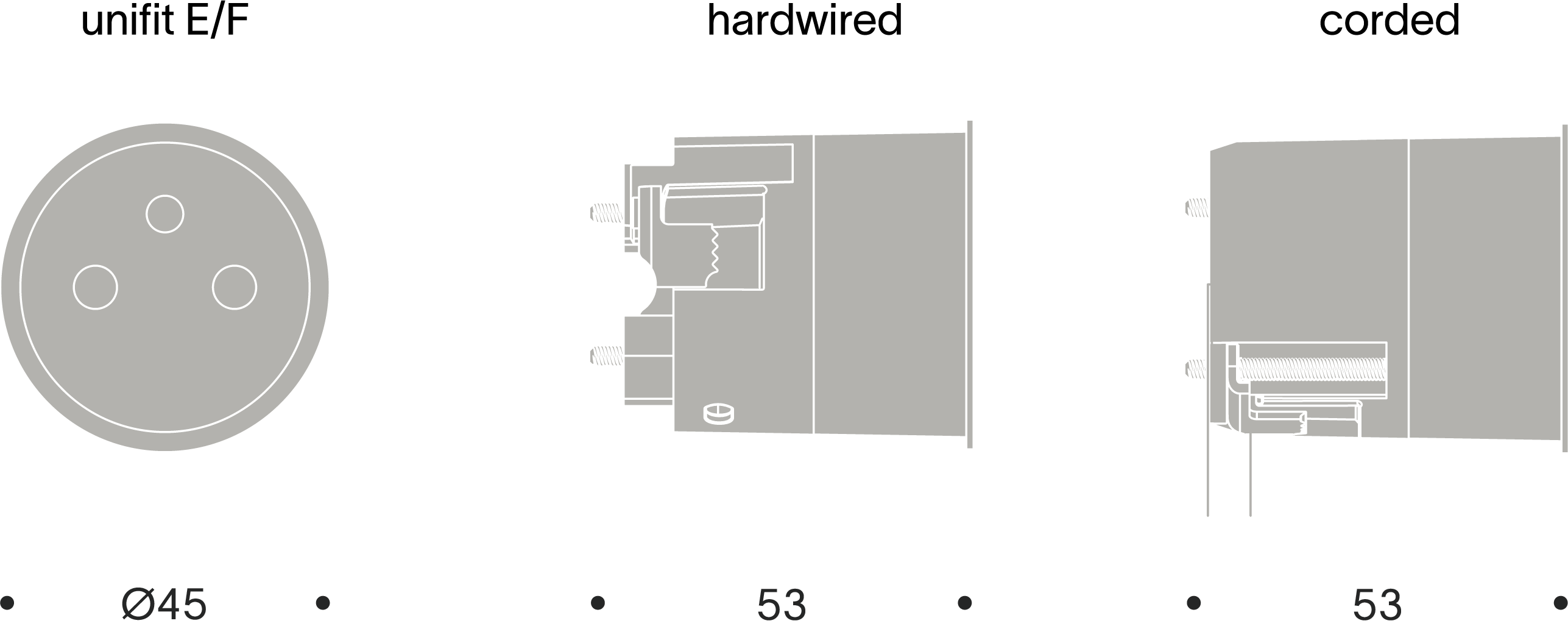

flush mount depth
50 mm (type E) 53 mm (type F)
ambient temperature
-5 till +40˚C
IP- / IK rating
IP21-D IK06
comes with
1.5 m cable and plug (corded)
screw terminals, junction box required (hardwired)
marking
CE

Accessories

rond | adjustable plaster ring unifit type E/F 4200-1000

Downloads

corded E - specs corded F - specs corded - installation hardwired E - specs hardwired F - specs hardwired - installation

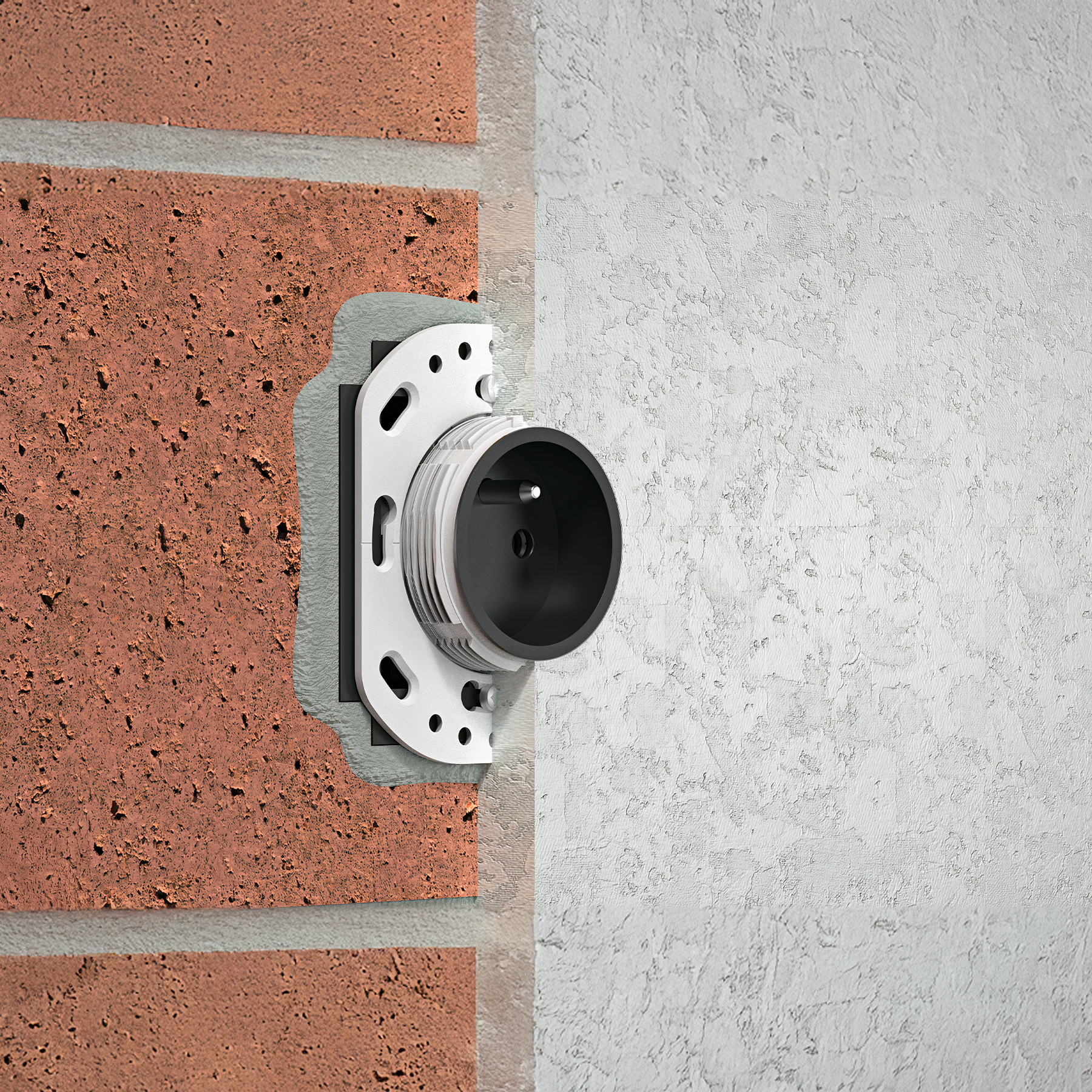

Installation in plaster.
adjustable plaster ring

+ for thin and thick plastered walls
+ adjustable for plaster between 3.6 and 20 mm
+ compatible with universal junction boxes

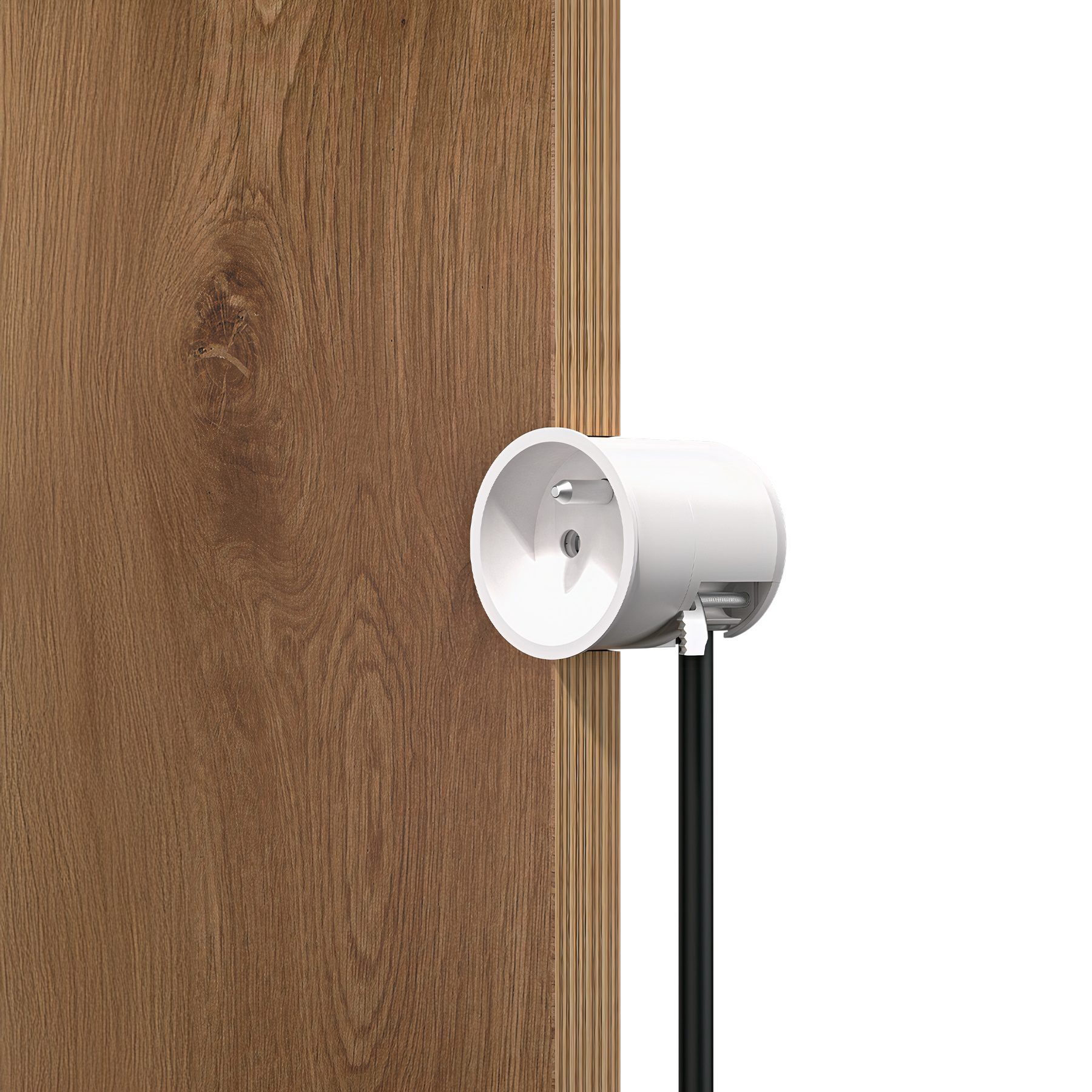

Installation in furniture.
unifit socket corded

Fits in wood and stone, without junction box.

+ made for furniture solutions
+ comes with a 1.5 m power cord
+ fits in a 16 to 32 mm panel thickness

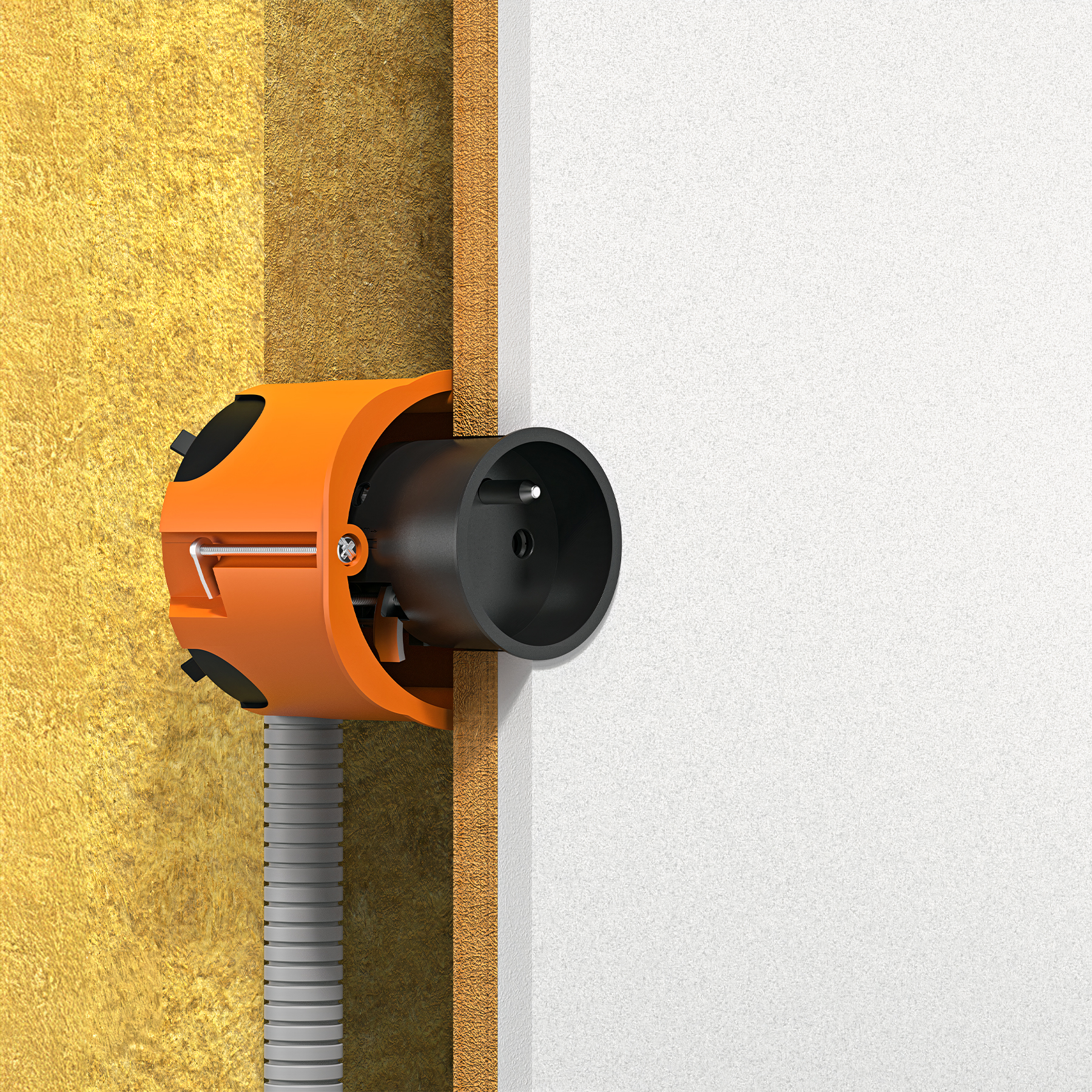

Installation in gyproc.
without plaster ring

+ works with different gyproc thicknesses
+ requires OSB reinforcement behind the gyproc
+ no extra plaster ring required, comes with a 1 mm trim
