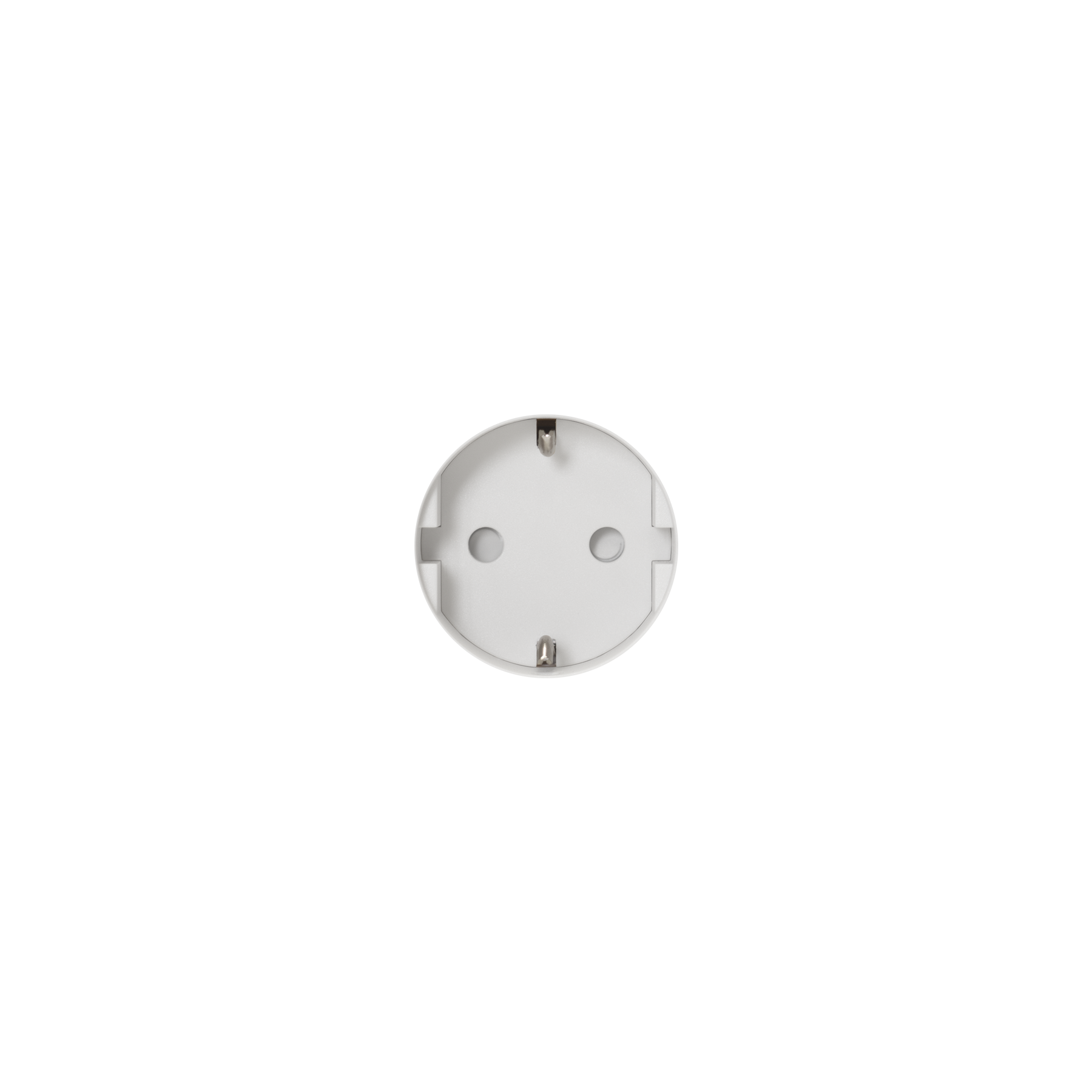

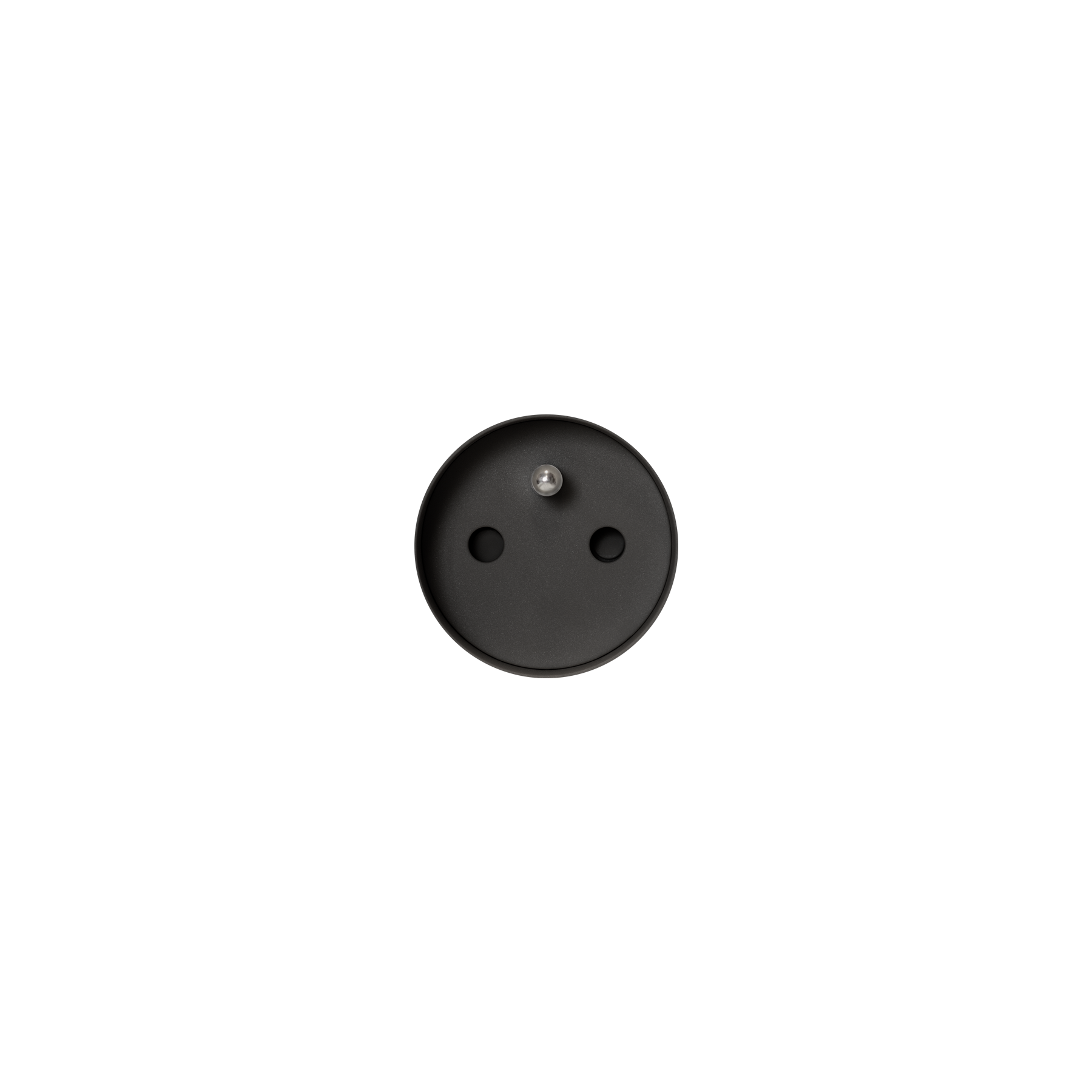

socket 3.0 type E/F

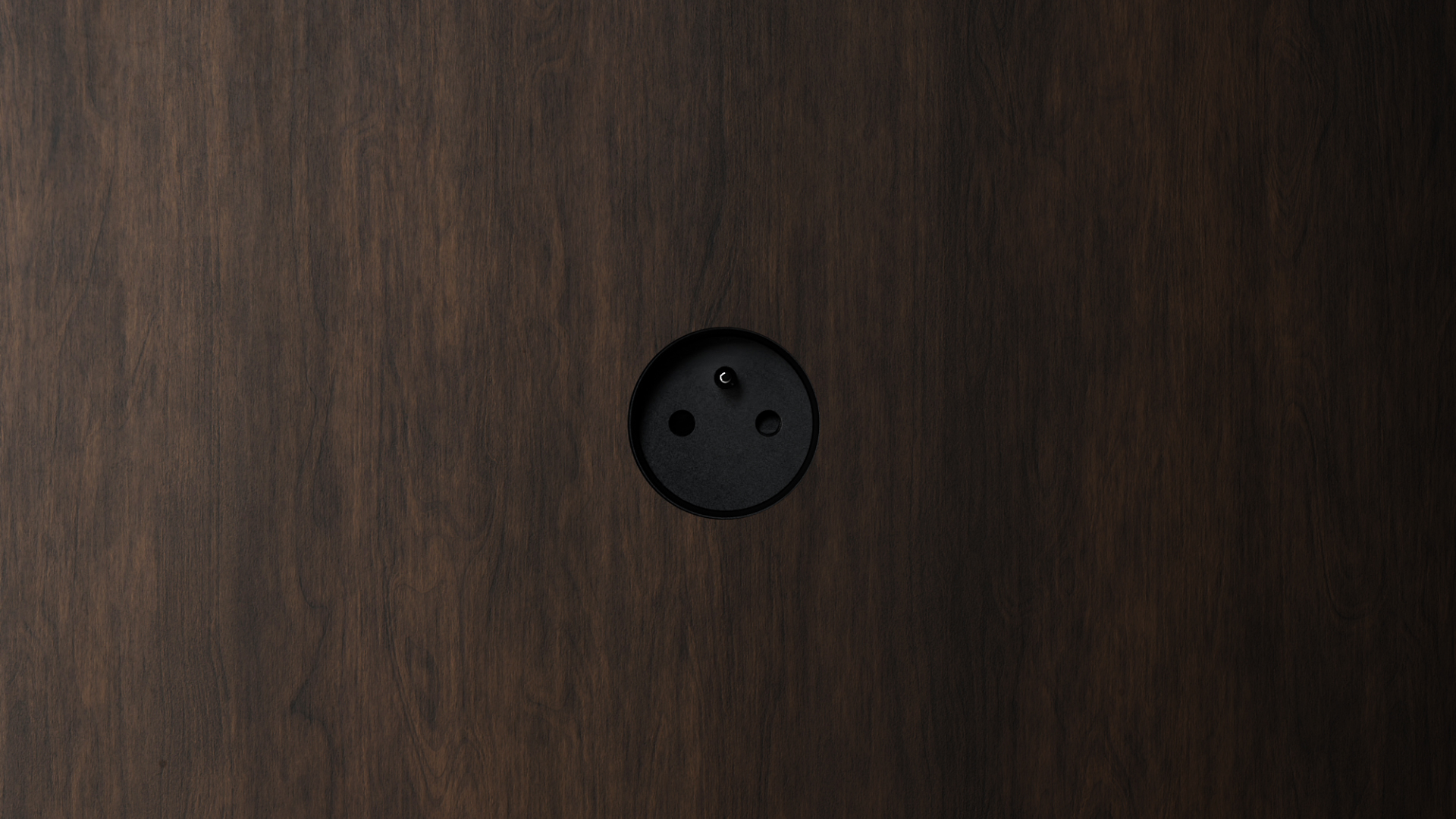

Introducing rond 3.0 – the truly trimless socket. Perfectly flush in wood, veneer, or stone. Requires a rond 3.0 backfit holder, a Ø42 mm hole, and a panel thickness of 18–23 mm. Front-accessible and fully removable with the rond 3.0 removal tool.
Recommended accessories
Consider adding these items for a successful installation.
Easy to install.
Easy to remove.

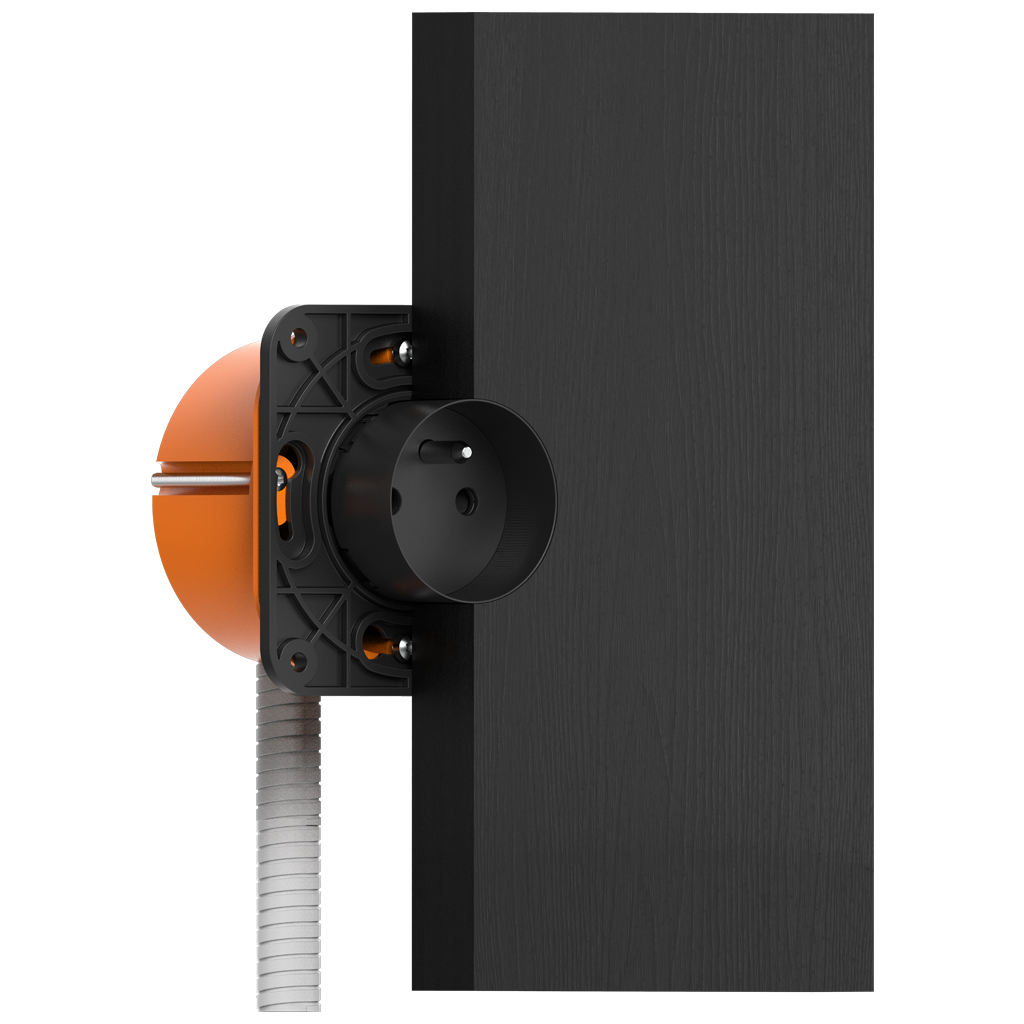

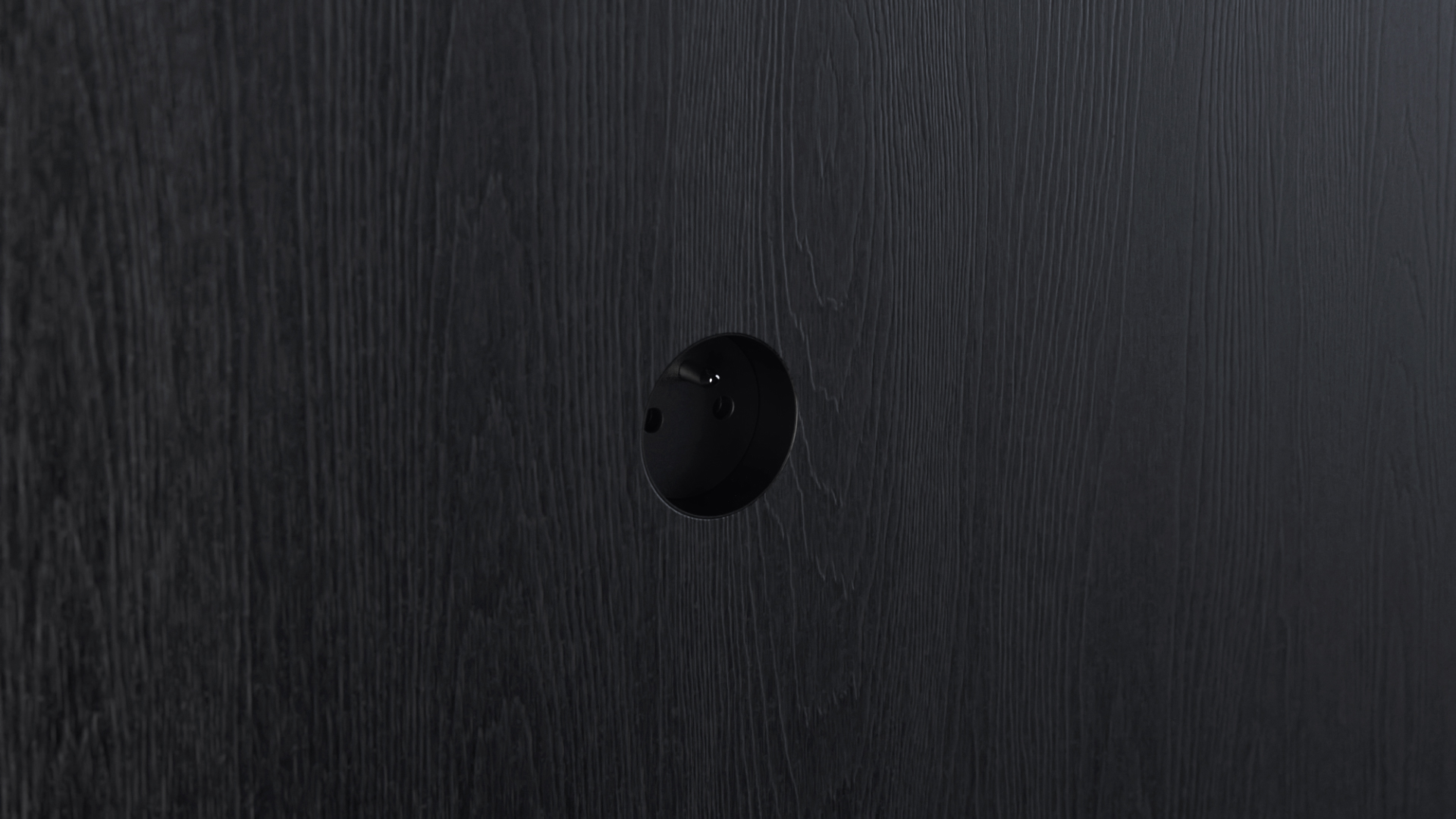

The rond 3.0 socket secures directly into your chosen panel material. Designed for panels 18-23 mm thick, it can be easily removed from the front using the rond 3.0 removal tool.
Configure yours
Introducing rond 3.0 series.
Truly trimless, almost invisible.
Product details
Specifications
application
16A/250V
flush-mounting depth
38.6mm (type E)
41.4mm (type F)
wire stripping length
13.8mm
wire capacity
up to 4 x 2.5mm² per terminal
wire fixation
screw terminal (TX8)
ambient temperature
-5 till +40°C
IP, IK rating
IP21-D
IK06
marking
CE
