230V switches.

Made for traditional installations. For both new build and renovations.

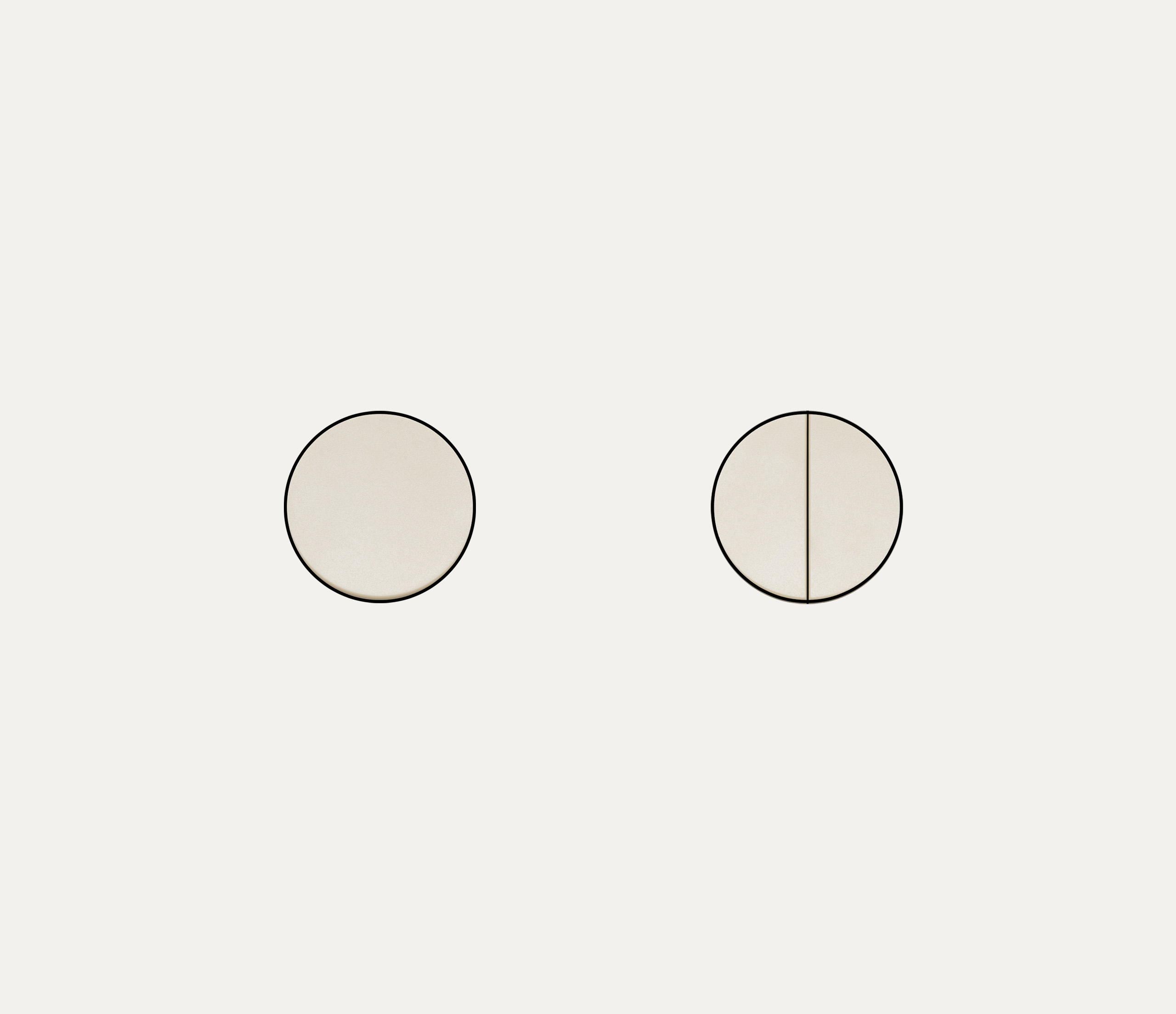

Switch type.

Select the 230V switch that meets your needs.

Application.

In which surface will you install?

Compatibility.

With which holder should it be compatible?

Finish.

Select your favourite.
Select color
Select color

Ring type.

Trimless or with a small trim?
No product found, please select all options.
Ships within 2 business days.
Select all desired options.
Ships within 2 business days.
Selected module

excl. VAT
Accessories
Ships within 2 business days.

Product details

Downloads

specs
installation

Accessories

rond | retrofit plaster ring 2.0 8800-2011
rond | multifit holder 2.0 8800-2012
rond | backfit holder 2.0 8800-2016
rond | removal tool 2.0 8800-2010

Specifications

application
10AX/250V
SBL load
100W
flush-mounting depth
retrofit/backfit 40 mm multifit 55 mm
wire stripping length
10.5 mm
wire capacity
up to 2 x 2.5 mm² per terminal
wire fixation
screw terminals (TX8)
ambient temperature
-5 till 40°C
IP rating
IP41
IK rating
IK06
marking
CE
