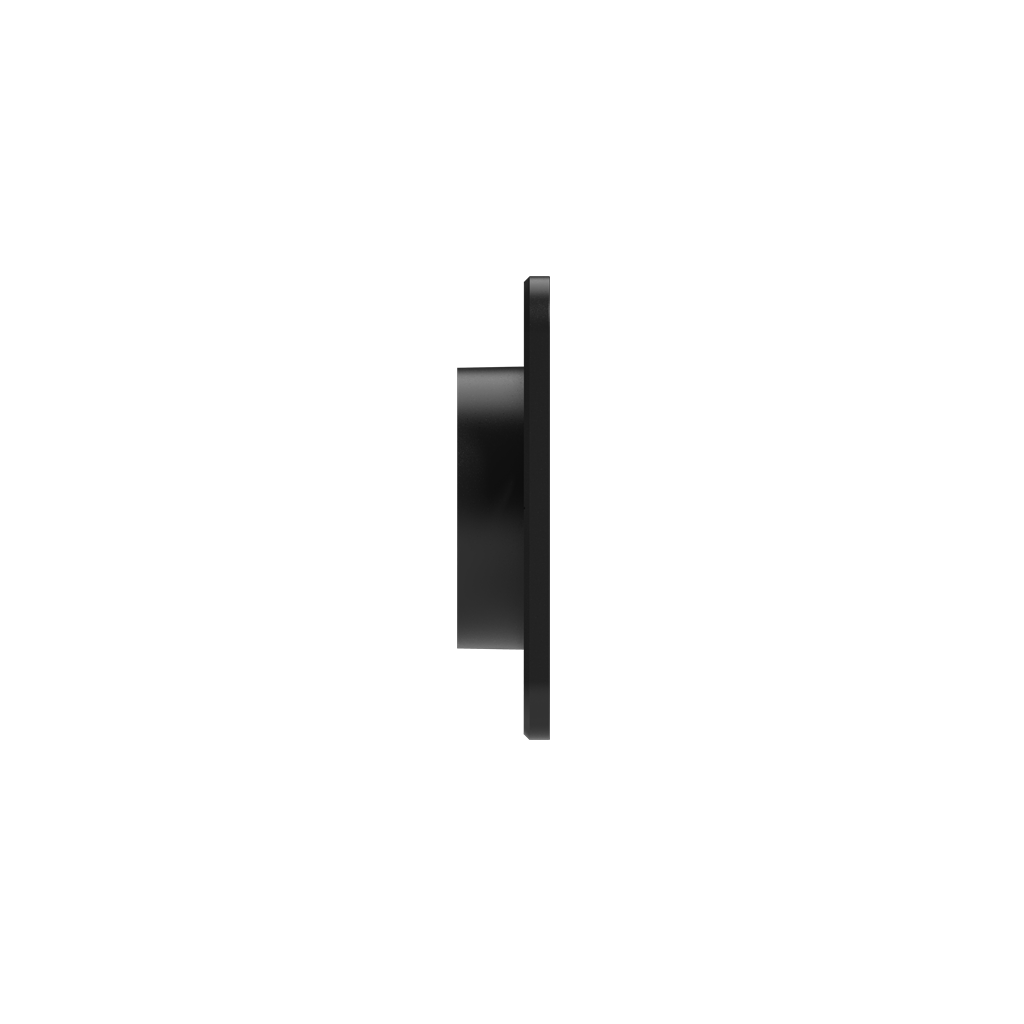

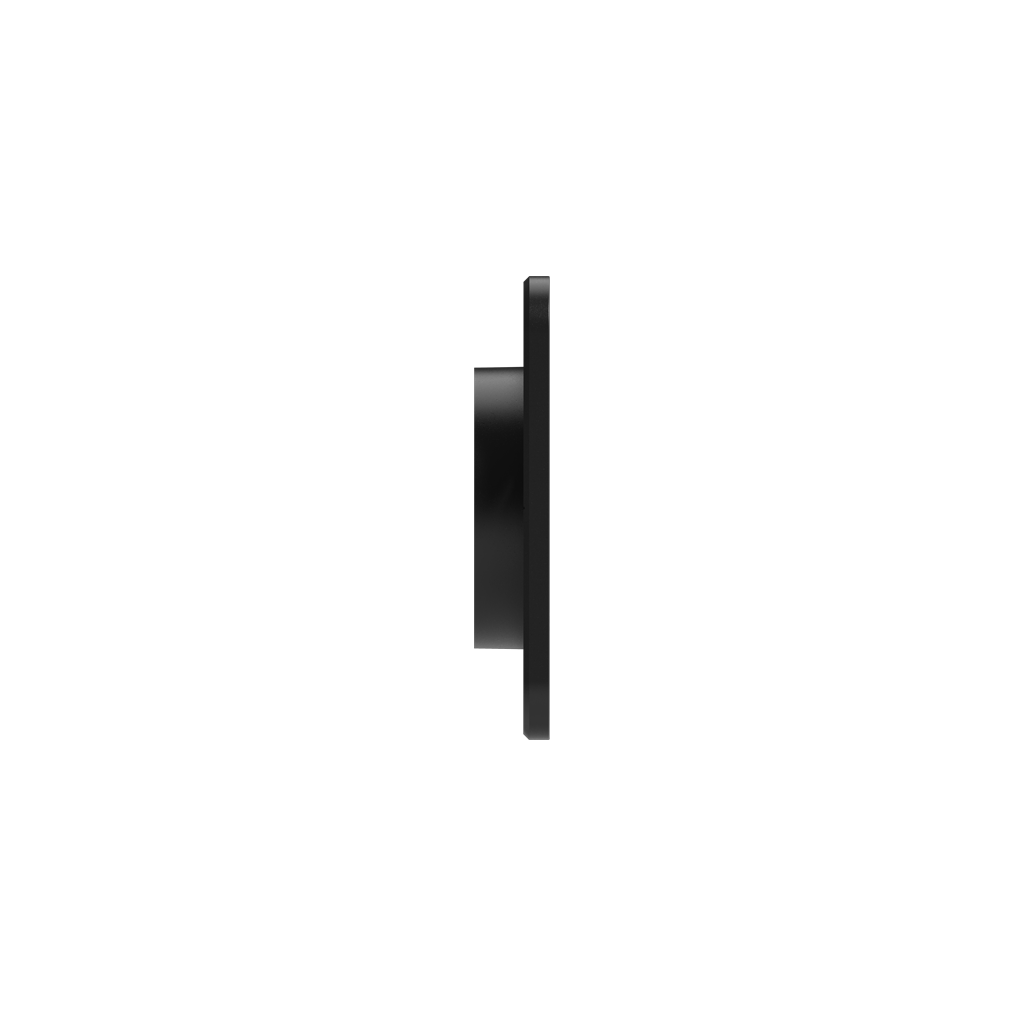

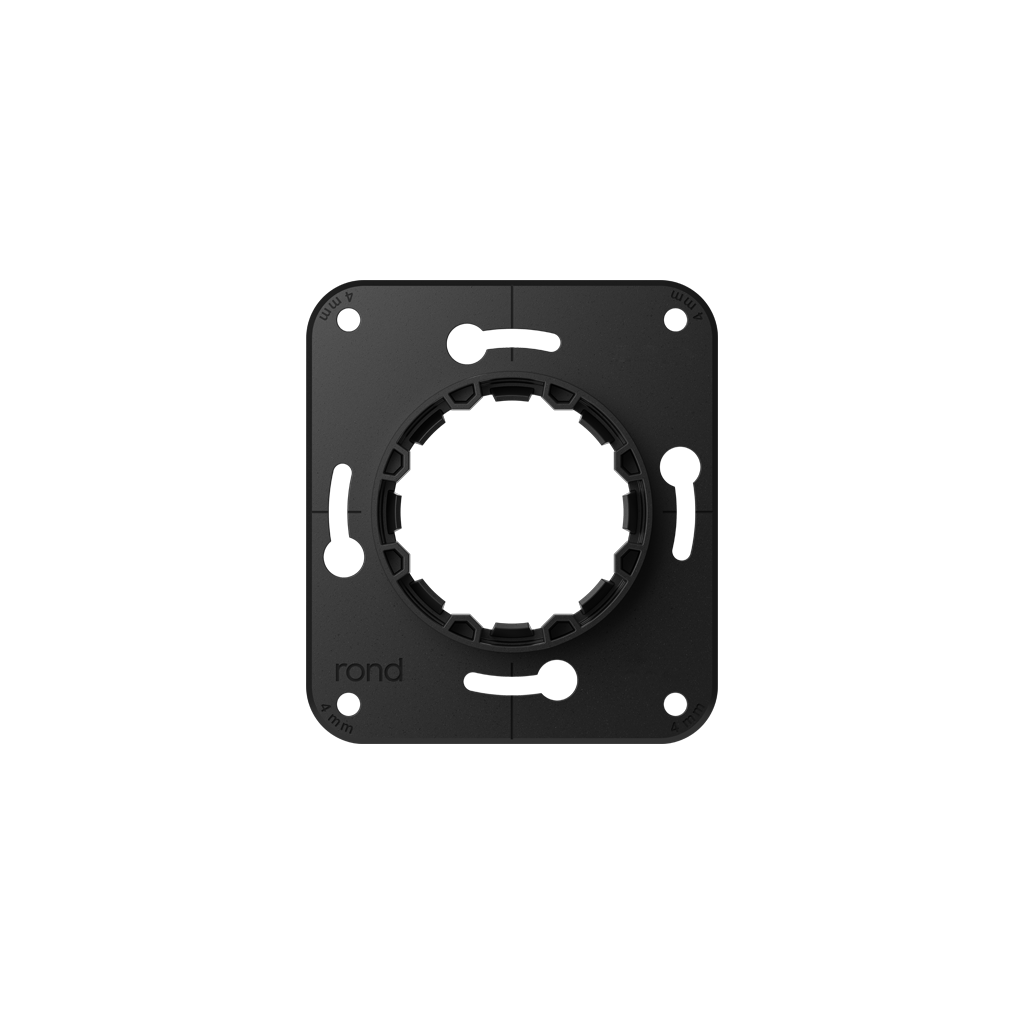

backfit holder 3.0
The rond 3.0 backfit holder allows you to install your rond 3.0 socket in wood, veneer or stone. compatible with standard junction boxes (minimum depth 47mm required). Available in 4 different variants for panel thicknesses from 11 to 23mm.
Recommended accessories
Consider adding these items for a successful installation.

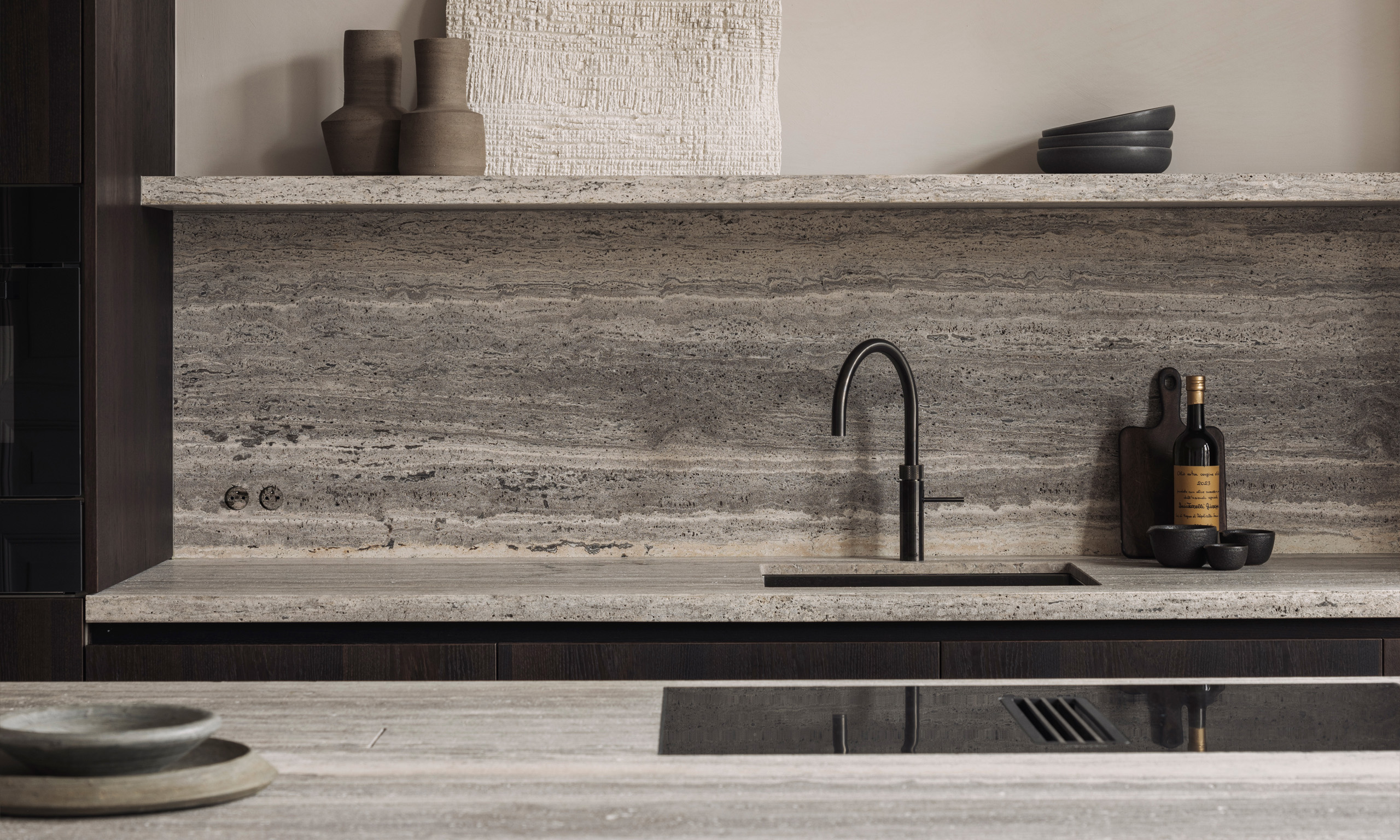

Introducing rond 3.0 series.
Truly trimless, almost invisible.
Product details
Specifications

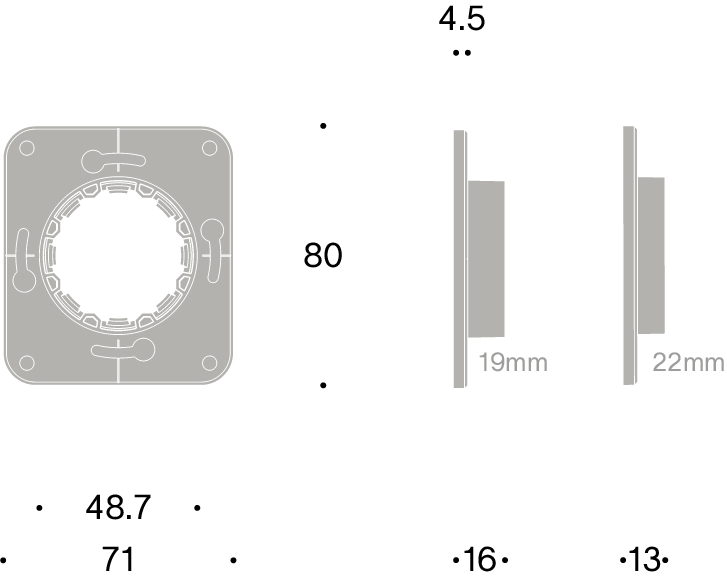

kit size
h80 w71 d13 (22 mm)
h80 w71 d16 (19mm)
h80 w71 d19 (16mm)
h80 w71 d23 (12mm)
weight
0.2kg
material
PP-GF30
location
indoor
compatibility
rond 3.0 series
junction box
required (min. depth 47mm)
installation hole
40mm (stone)
42mm (other materials)
panel thickness
21-22-23mm
18-19-20mm
15-16-17mm
11-12-13mm
