rond 2.0 switch

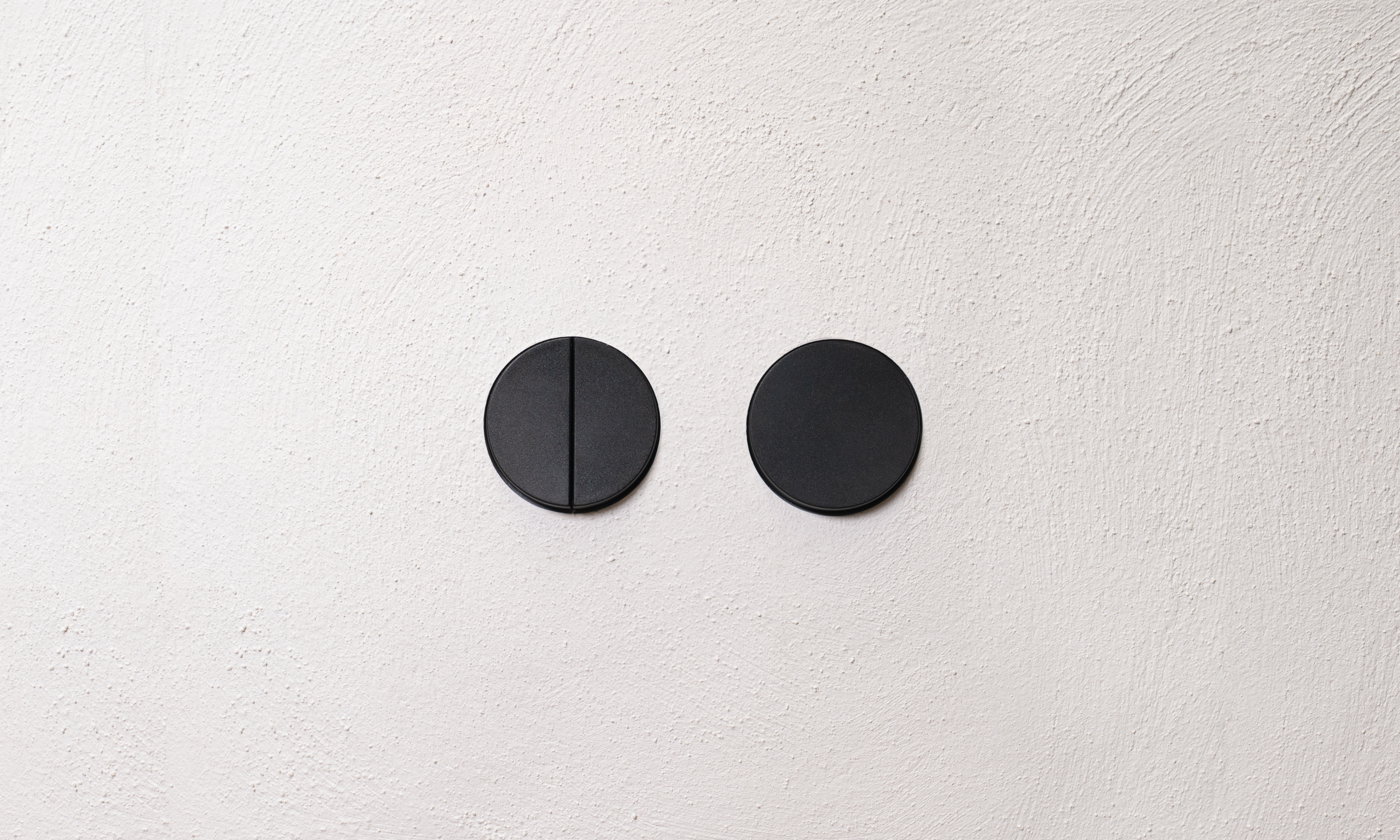

Rond 2.0 “classic” 230V switches are the perfect choice for renovations and projects without home automation. Every 45° rotatable. Compatible with all rond 2.0 installation kits for wider application possibilities. Depending on your requirements, choose your switch type: from two-pole switch for your bathroom to intermediate switch. Installation kit not included. Available from August 2023.


product overview

 29,00 69,00 (excl. VAT)

Product details

all-new module
endless possibilities

Installing in wood, veneer, stone, thin or thick plaster? With rond 2.0, the possibilities are endless. Choose the appropriate kit - multifit, retrofit or easyfit - for your specific application.

Product details

icoon gewicht 0.2


SBL load
flush-mounting depth
easyfit/retrofit 40 mm multifit 55 mm
wire stripping length
10.5 mm
wire capacity
up to 2 x 2.5 mm² per terminal
wire fixation
screw terminals (TX8)
ambient temperature
-5 till +40°C
IP rating
IK rating

fits in wood, veneer and stone

The ultimate solution for furniture applications. With an outside diameter of only 52mm. Requires a Ø48 hole and an 8-30mm panel thickness. Flush or with a small trim? The choice is yours.

+ removable
+ freely rotatable
+ wide range of finishes

fits in universal Ø68 junction boxes

The ultimate solution for universal junction boxes, round or square. For both new build and renovations. Available trimless or with a small trim, for easy plastering. Electrical connections remain accessible after plastering. Removable by tool.

+ removable
+ every 45° rotatable
+ wide range of finishes

fits in solid, plastered walls

The ultimate solution for brick walls. The Ø130 rond plaster box allows up to 3 times faster installation. Thanks to the all-new rond 2.0 module, electrical connections now remain accessible after plastering. Available trimless or with a small trim, for easy plastering. Same design, new possibilities.

+ removable
+ every 45° rotatable
+ wide range of finishes

removable by tool
always accessible

The all-new rond switch can also be removed from its kit after installation. In this way, wires remain accessible at any time.
