light ventilation
trim long
The world’s first good looking ventilation valve in an easy to install trim version. Fits in every Ø125 valve adapter. Its IP65 rating makes it even suitable to ventilate in showers. Works with DUCO. Works with Renson. Works with every other ventilation system.
Recommended accessories
Consider adding these items for a successful installation.
award winning design
makes ventilation disappear
Invisible air supply and extraction, up to 55m³/h. Works for your bathroom. Works for your living room. Works for any other room.
ventilation valves that
work with every system
Extract up to 55m³/h. Completely invisible and incredibly quiet. The trim ring fits in every Ø125 ventilation duct, a flow setting scale and rasterized adjustment positions allow easy and accurate adjustment. Simply twist the light to start tweaking. Light and ventilation valve are easily retractable, ideal for maintenance. An integrated lock prevents from accidentally modifying the air flow after installation. Introducing a ventilation valve that effortlessly works with every ventilation system. Works with DUCO, works with Renson, works with every other ventilation system.
installation video
beautiful luminaires that
deliver sublime light
Pure cylindrical forms crafted from precision milled, anodised aluminium. A custom-built glass lens that brings you a low glare light experience. Industry leading LED technology, delivering up to 975 lumen. Its ability to rotate – up to 30° of tilt and 360° of rotation – along with its IP rating make it perfect for any type of room. Introducing a fixture that’s stunning in every way you look at it.
Product details
132
360°
Specifications
Accessories
FAQ about ventilation
-
How is the light ventilation valve powered ?
Our light ventilation valve recieves its power via the valve adapter. Use our prado connector (complementary with the Ø108 plaster ring) to connect the Ø16 preflex to the valve adapter. All light ventilation fixtures are IP65 rated so they can even be used in the shower. Watch the installation video to learn more about installation.
Can the light ventilation valve be used for air supply ?
Our light ventilation valve is designed for air extraction of up to 55 m³/h and air supply of up to 30 m³/h. Just like most regular ventilation valves, a downward airflow isn’t suited for installation in or above comfort zones. So make sure to correctly position air supply valves in the room, not above seating areas for example. More information and capacity graphs on the technical sheet. Don’t hesitate to contact us to check your ventilation plan for advice.
Which ventilation brands can I use with light ventilation ?
We work independent of any brand. Our light ventilation products are compatible with any ventilation system (DUCO, Renson, any other ventilation system). Our light ventilation products can be placed into any Ø125 valve adapter.
What is the minimal height required to install a light ventilation valve ?

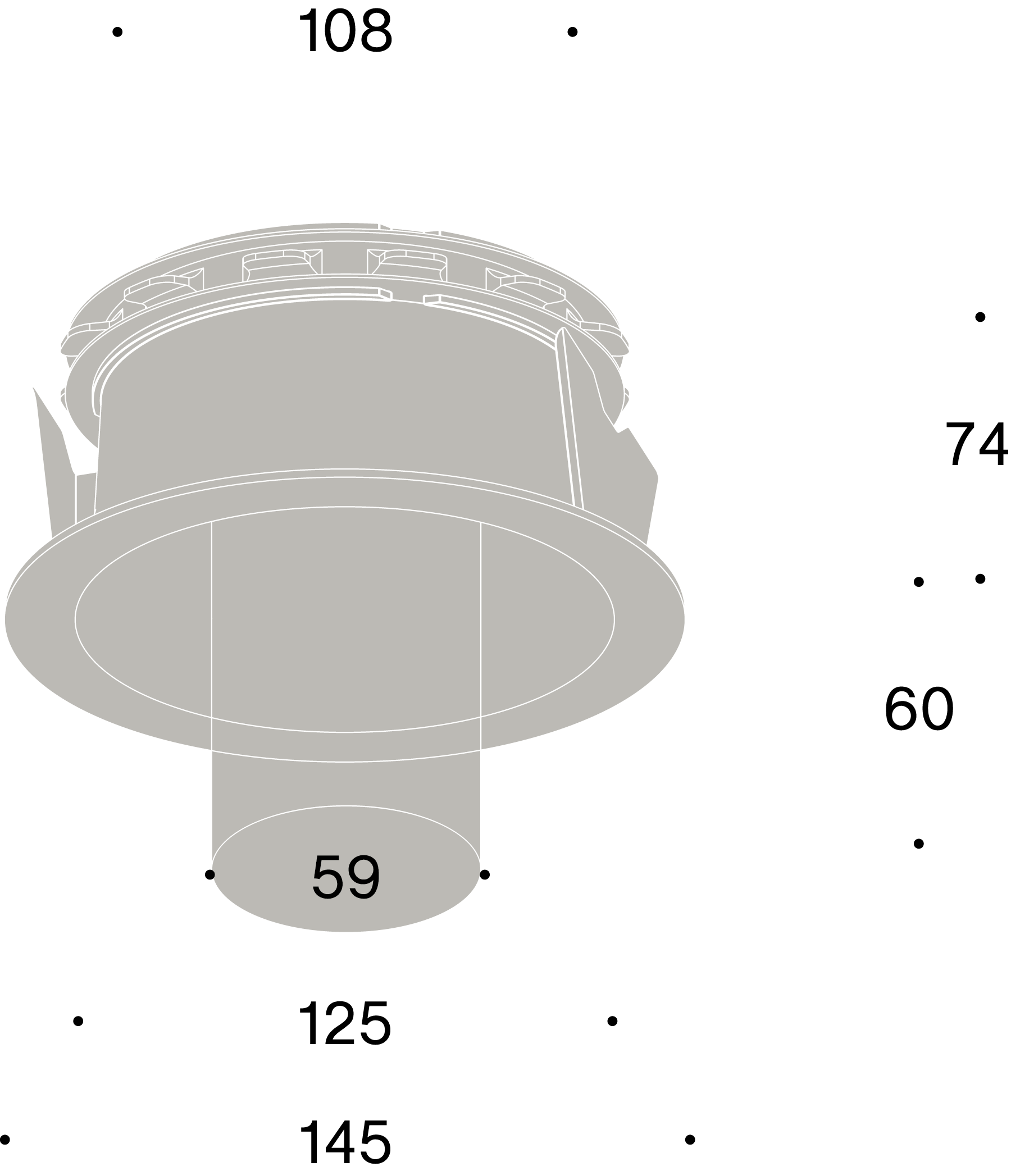

The vertical part of the ventilation adapter (before the start of the turn) must be at least 74 mm high for the plaster ring to be installed correctly. The connector can’t be placed in this zone. With most valve adapters, this means you need a total height of at least 105 mm. Check the Ø108 plaster ring installation instruction or watch the installation video to learn more about installation.
