light + ventilation | long

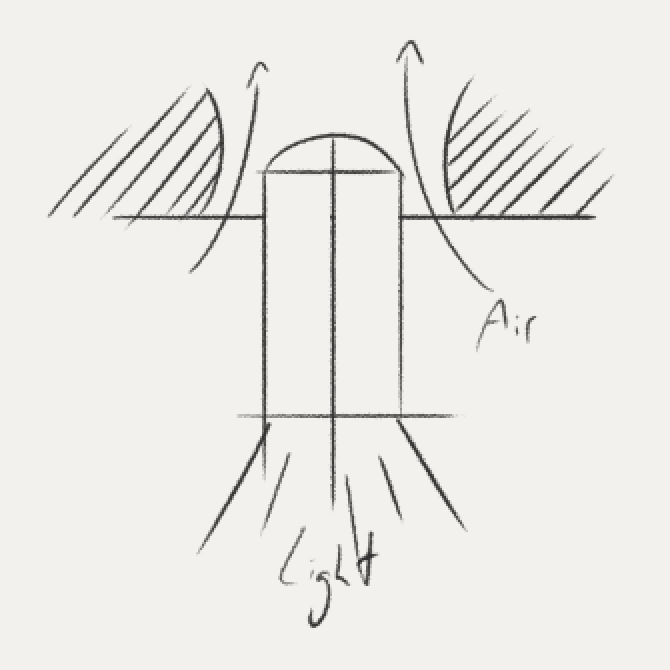

The world’s first good looking ventilation valve.
Made from precision milled, anodised aluminium.
Show what you want, hide what you need.



highlights

Clear
SKU: N/A Category:

Description

8000 – 0001         plaster ring Ø108
8000 – 0011         clt csc ring Ø108
8000 – 0021         DALI dimmable driver 38W
8000 – 0022        1-10V dimmable driver 36W
8000 – 0023        non-dimmable driver 42W
8000 – 0026        DALI dimmable driver 60W
8000 – 0027        DALI deep dim driver 20W

Additional information

light specs

LED
IP44
class III
glass lens
driver excl.
350 – 850 mA
up to 1100 lumen
CRI90+ (97 on request)
ventilation specs

air extraction
max. 50m³/h
< 25 dB(A)
7 – 75 Pa
adjustable air flow (32 steps)
integrated lock mechanism
adjustability

v 30° h 360°
cut-out size

Ø 132 h 105
weight

0.7 kg
other

patent pending

downloads

product sheet
installation video
installation instruction
