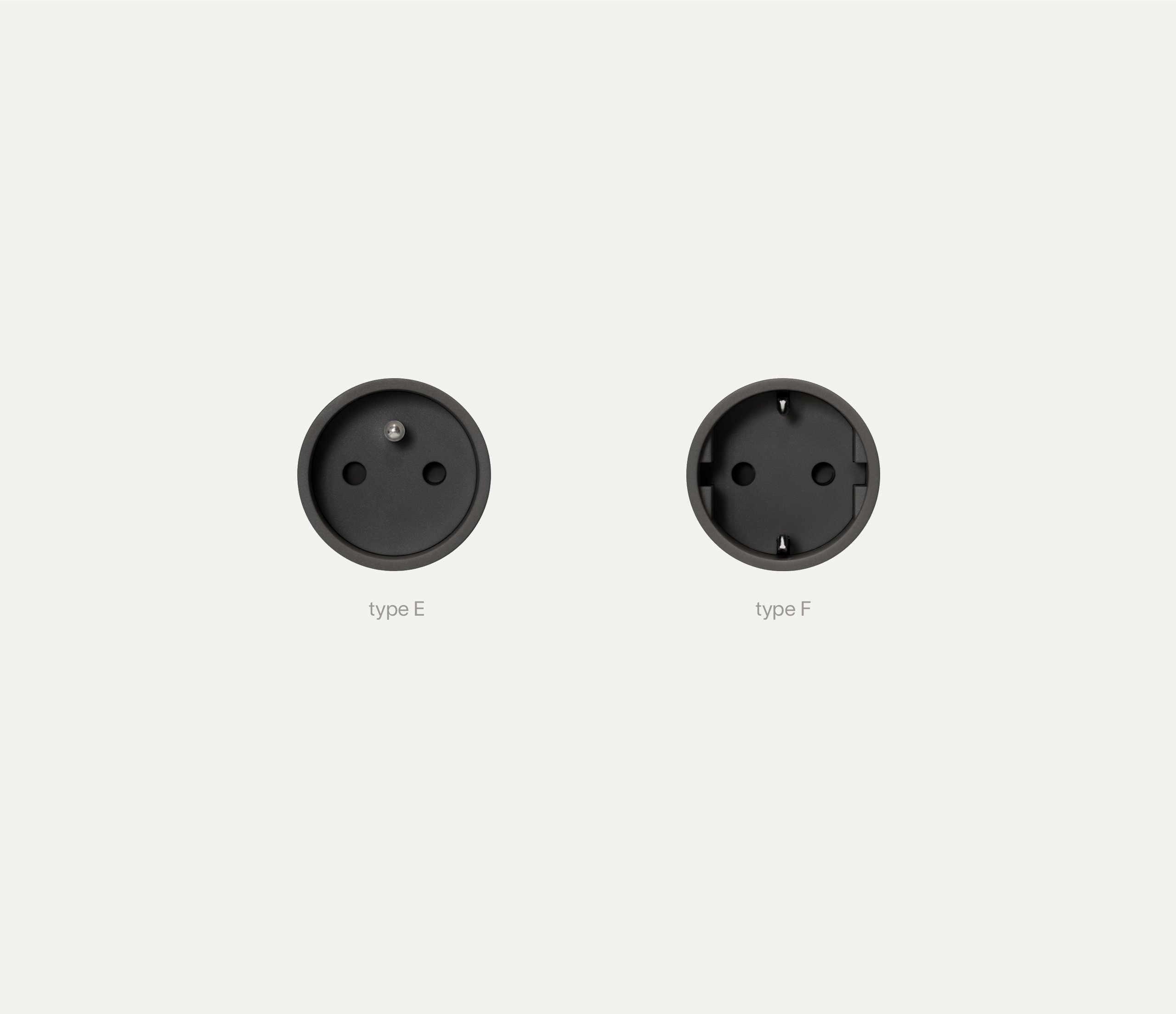

Socket type.

Choose the right type for your country.

Type E

Belgium, France, ...

Type F

Netherlands, Germany, Luxembourg, Sweden, Denmark, Finland, Norway, Austria, Iceland, Spain, Italy, Portugal, ...

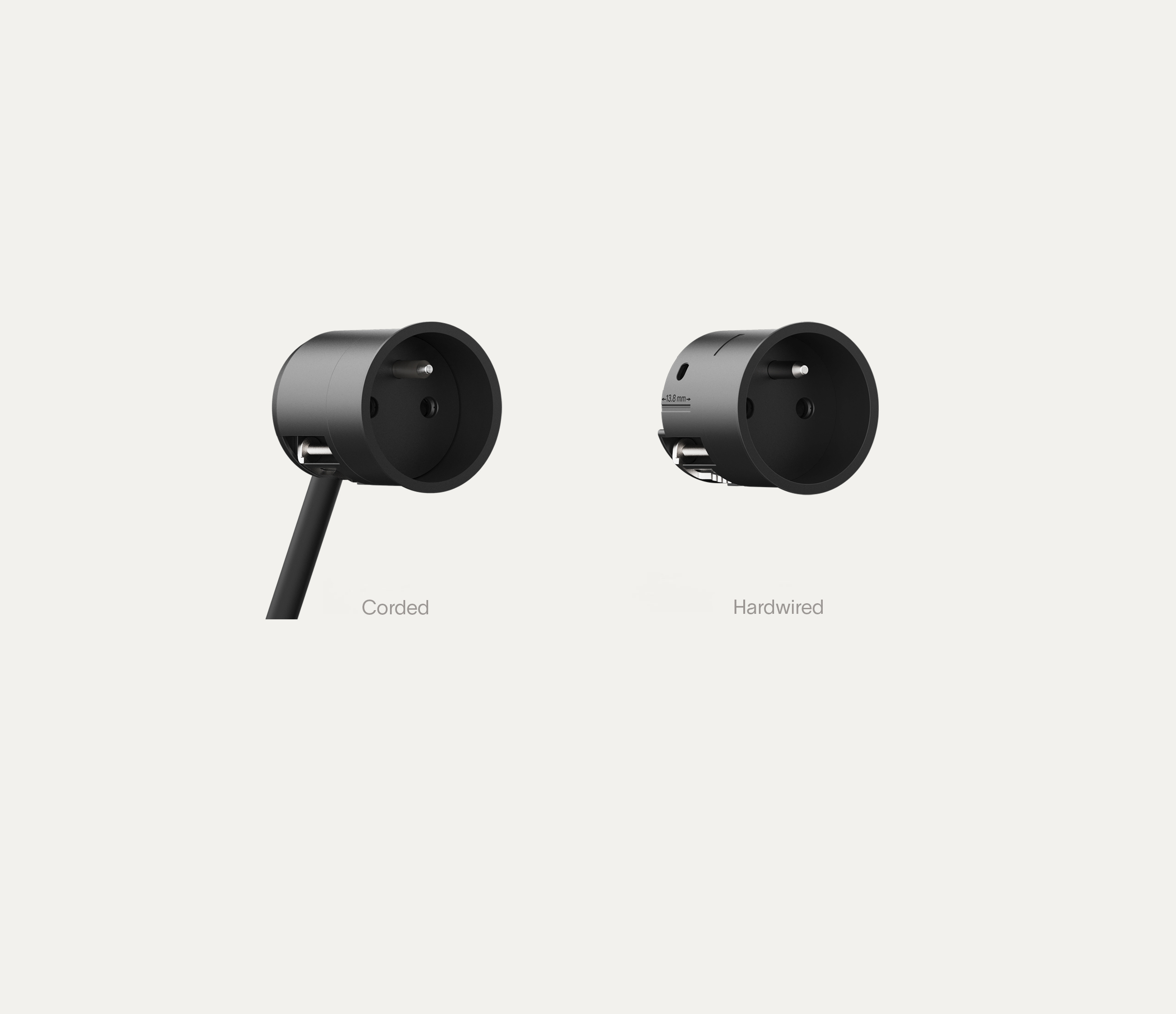

Cabling.

Installing with or without a junction box?

Hardwired

This version requires to be hard wired and comes with screw terminals, just like rond 2.0 sockets and others. Unifit hardwired requires a junction box for installation.

Corded

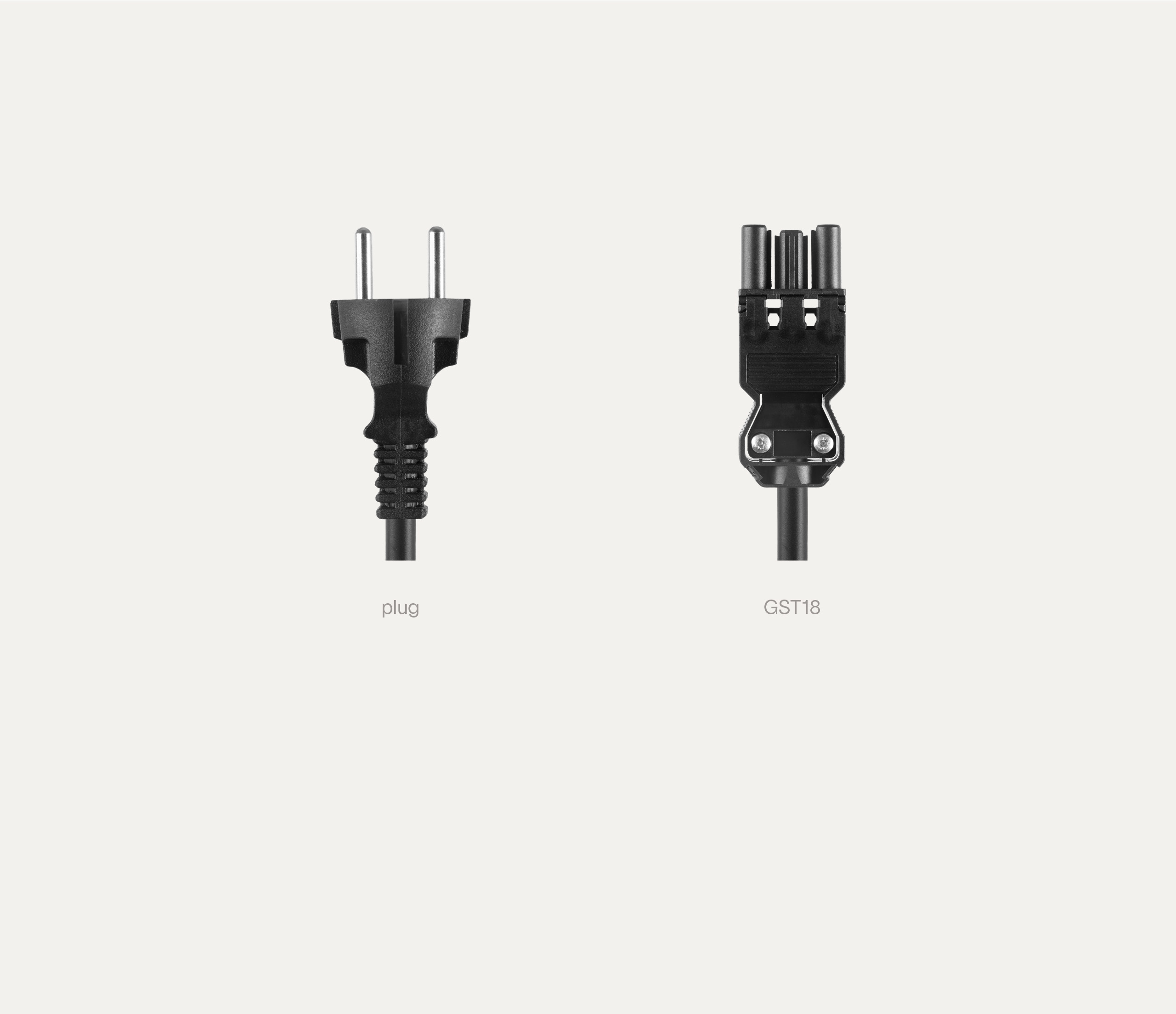

The 'wired' version is a corded version, it comes with a 1.5 m cable and a plug or GST18 connector, which makes it perfect for installations without a junction box, like furniture.

Connection type.

Select the connection that fits your setup.

Application.

In which surface will you install?

Compatibility.

Optional.

Finish.

Choose your favourite.
Select color
No product found, please select all options.
Ships within 2 business days.
Select all desired options.
Ships within 2 business days.
Selected module

excl. VAT
Accessories
Ships within 2 business days.

Product details

Downloads

corded E - specs
corded F - specs
corded - installation
hardwired E - specs
hardwired F - specs
hardwired - installation

Accessories

rond | adjustable plaster ring unifit type E/F 4200-1000
rond | bi-metal hole saw Ø42 + adapter

Specifications

installation hole
Ø42 mm
flush mount countersink
Ø45.4 x 1 mm depth
panel thickness
16-32 mm (adjustable lugs)
application
16A / 250V
flush mount depth
50 mm (type E) 53 mm (type F)
ambient temperature
-5 till +40˚C
IP- / IK rating
IP21-D IK06
comes with
1.5 m cable and plug (corded)
screw terminals, junction box required (hardwired)
marking
CE
