Configure your socket.

Personalise the minimalist rond 3.0 stone series for your project.

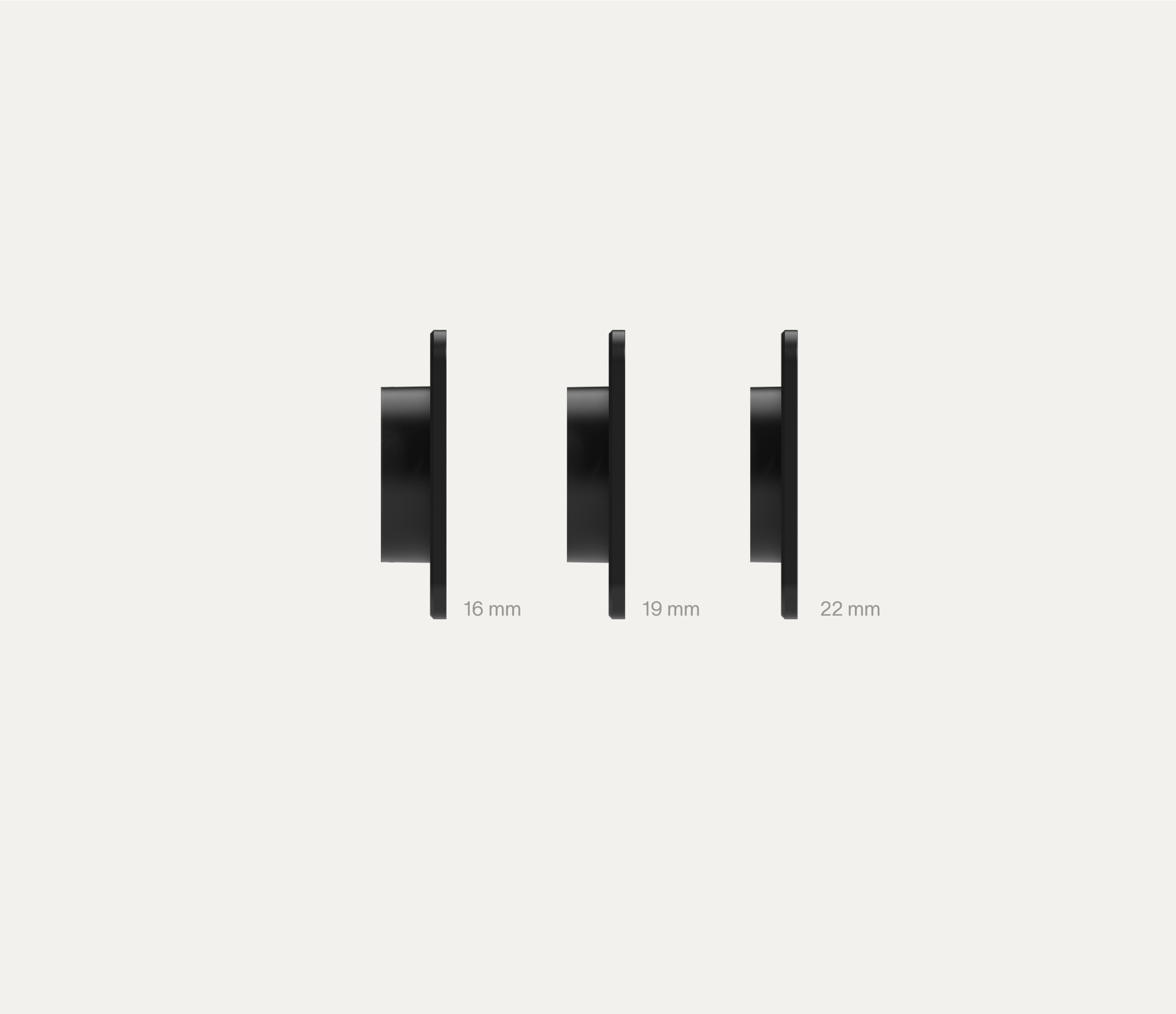

Panel thickness.

Select depending on the panel thickness.

If the finish material thickness is not 16, 19 or 22 mm (depending on choosen backfit holder), machine down or add (wooden) plate to achieve the correct total depth (16, 19 or 22 mm).

Finish.

Choose your favourite.
Select color

The rond 3.0 stone sockets comes with a plastic cover plate in the box. A stone cover plate is not included. Replace the plastic cover plate with by a custom 3 mm slice of matching stone for a flawless, continuous finish. See installation instruction to learn more.

No product found, please select all options.
Ships within 2 business days.
Select all desired options.
Ships within 2 business days.
Selected module

excl. VAT
Accessories
Ships within 2 business days.

Product details

Downloads

type E - specs
type E - installation

Accessories

rond | backfit holder 3.0
rond | removal tool 3.0 0042-0000

Specifications

application
16A/250V
flush-mounting depth
38.6mm (type E)
wire stripping length
13.8mm
wire capacity
up to 4 x 2.5mm² per terminal
wire fixation
screw terminal (TX8)
ambient temperature
-5 till +40°C
IP, IK rating
IP21-D IK06
marking
CE
